TX120 S3
Upgrade and Maintenance Manual
219
Expansion cards and backu
p units
9.4.1.4
Netwo
rk adapter D2745

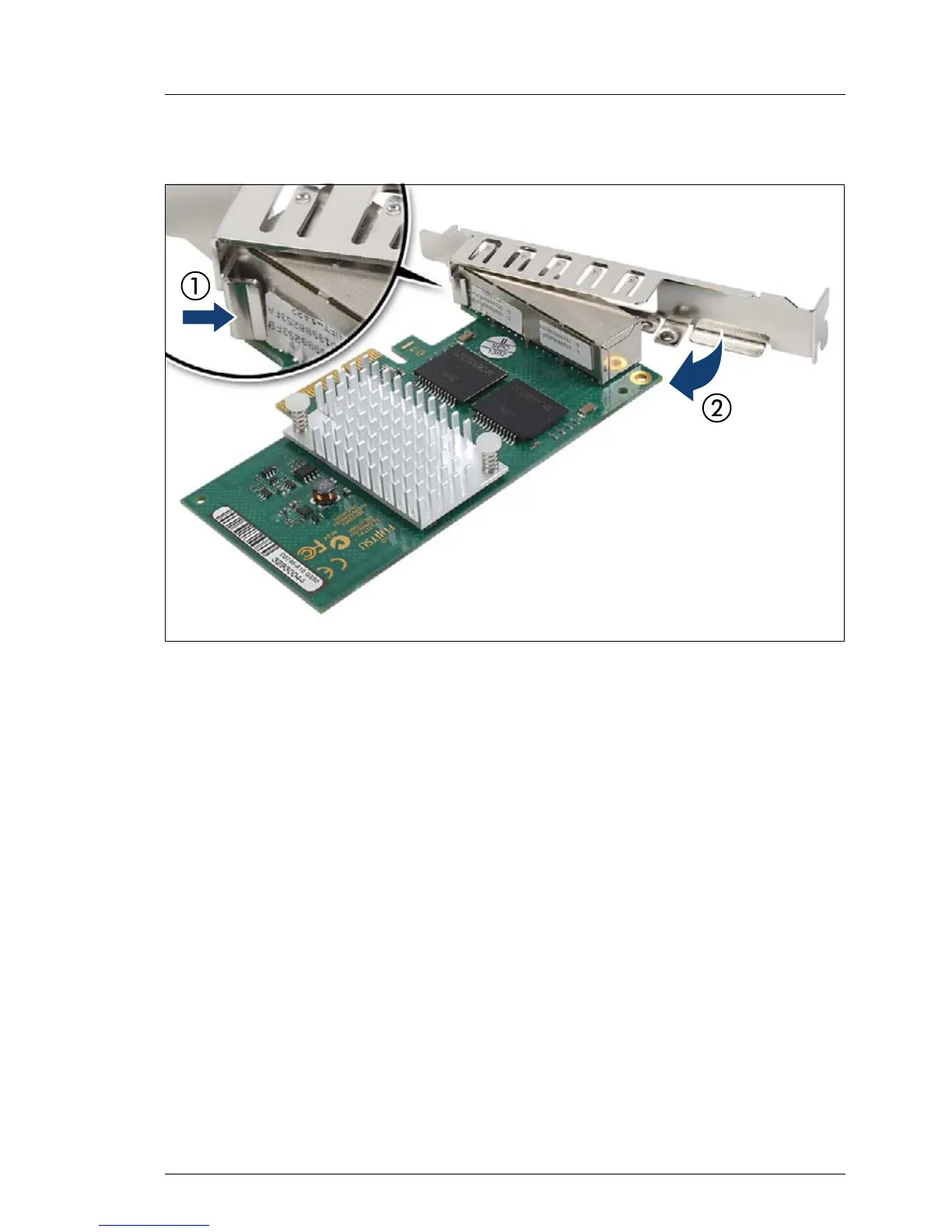

Figure 1
1
1:
Network adapter
D2745 - Mount
ing the slot bracket
(A)
Ê
Hinge the slot bracket to the plug shell as shown (1).
Ê
Fold the slot bracket towards the controller until the threaded mounting
tab
is aligned with the s
crew hole on the controller (2).
218
220
