218
Upgrade and Mai
ntenance Manual
TX120
S3
Exp
ansion cards and backup un
it
s

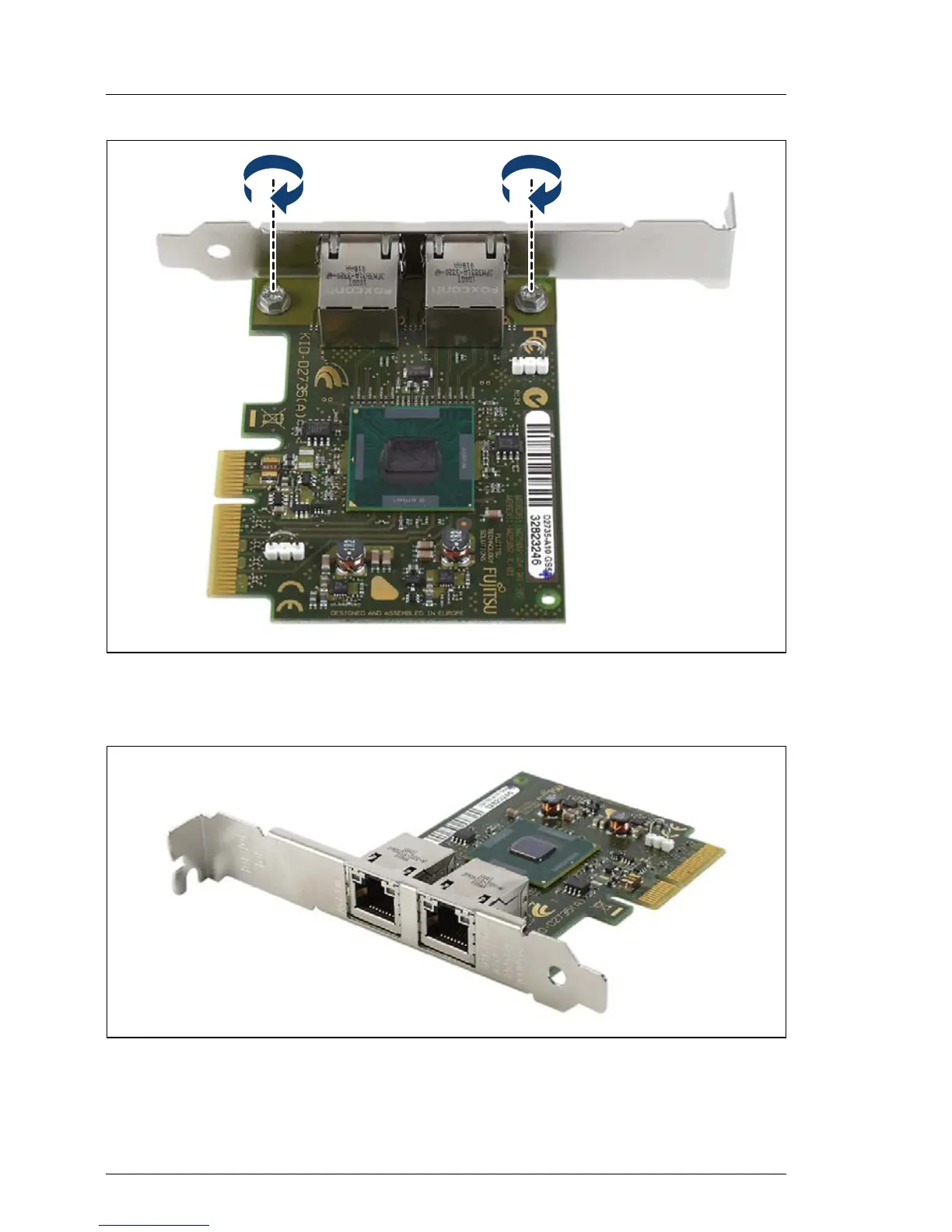

Figure 109: Network adapter D2735 - Mounting t
he slot bracket (B)
Ê
Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 1
10: Network adapter
D2735 - M
ounting the slot brac
ket (C)
I
Assembled network adapter D2735
217
219
