TX120 S3 Upgrade and Maintenance Manual 429
Appendix
16.3.1.2 Onboard settings

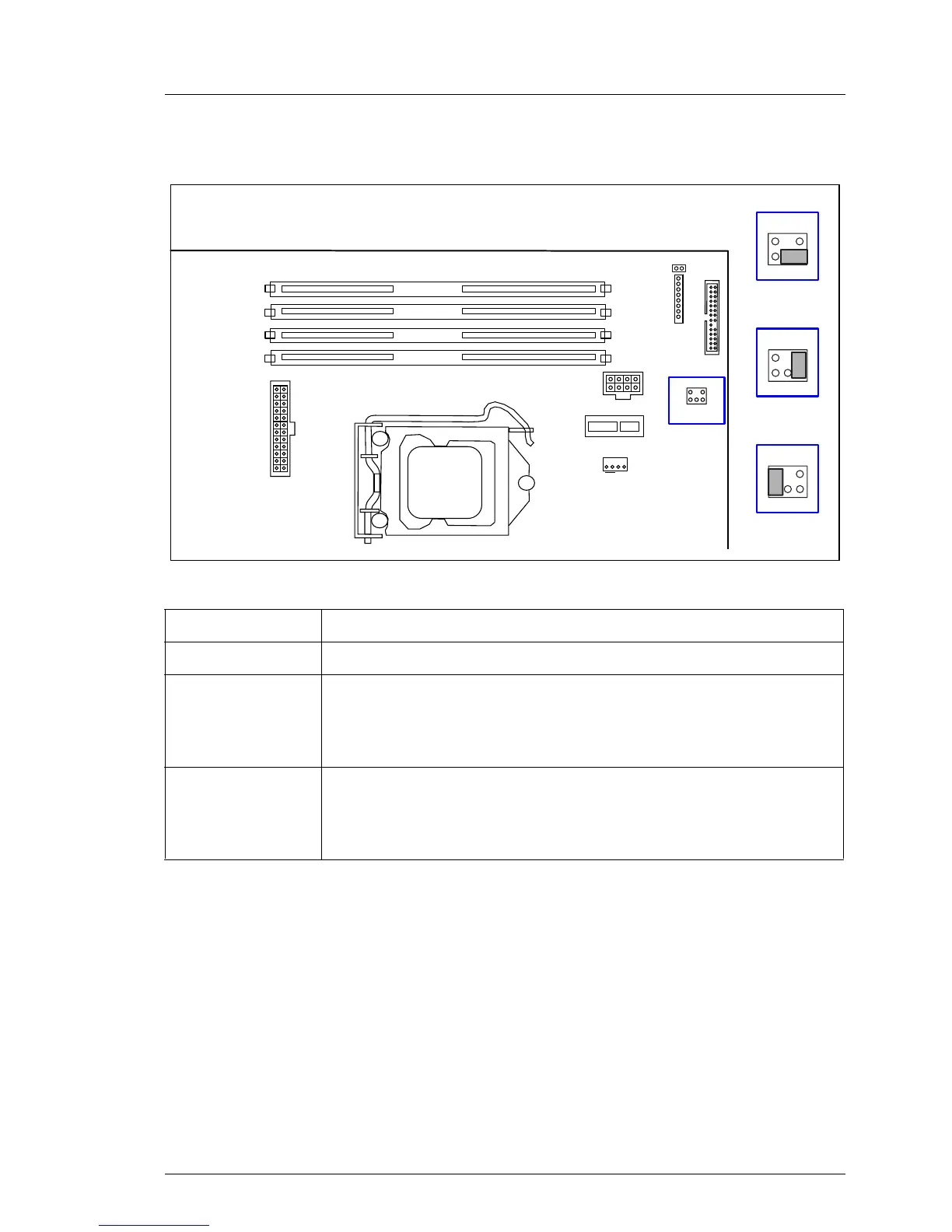

Figure 283: Jumper
Setting Description
Default Password skip disabled and recovery BIOS disabled
RCVR Recovery BIOS enabled
When the recovery BIOS is applied on a system board, the
password set by customers disappears from system board.
PWD SKIP Password delete enabled
The password is deleted and the default BIOS settings are
applied after “PWD SKIP” jumper was set once.
Default
RCVR
PWD SKIP
POWER1
DIMM2A
DIMM1A
DIMM2B
DIMM1B
CPU
Front panel USB
SATA
POWER
PC2009
Jumper
FAN2 SYS
FRONT LAN
