128 Upgrade and Maintenance Manual TX120 S3
Hard disk drives / solid state drives
7.2.3.4 Installing a 2.5-inch HDD / SSD dummy module
V CAUTION!
If the removed HDD / SSD module is not replaced immediately, always
replace a dummy module into the unused HDD / SSD bay to comply with
applicable EMC regulations and satisfy cooling requirements.

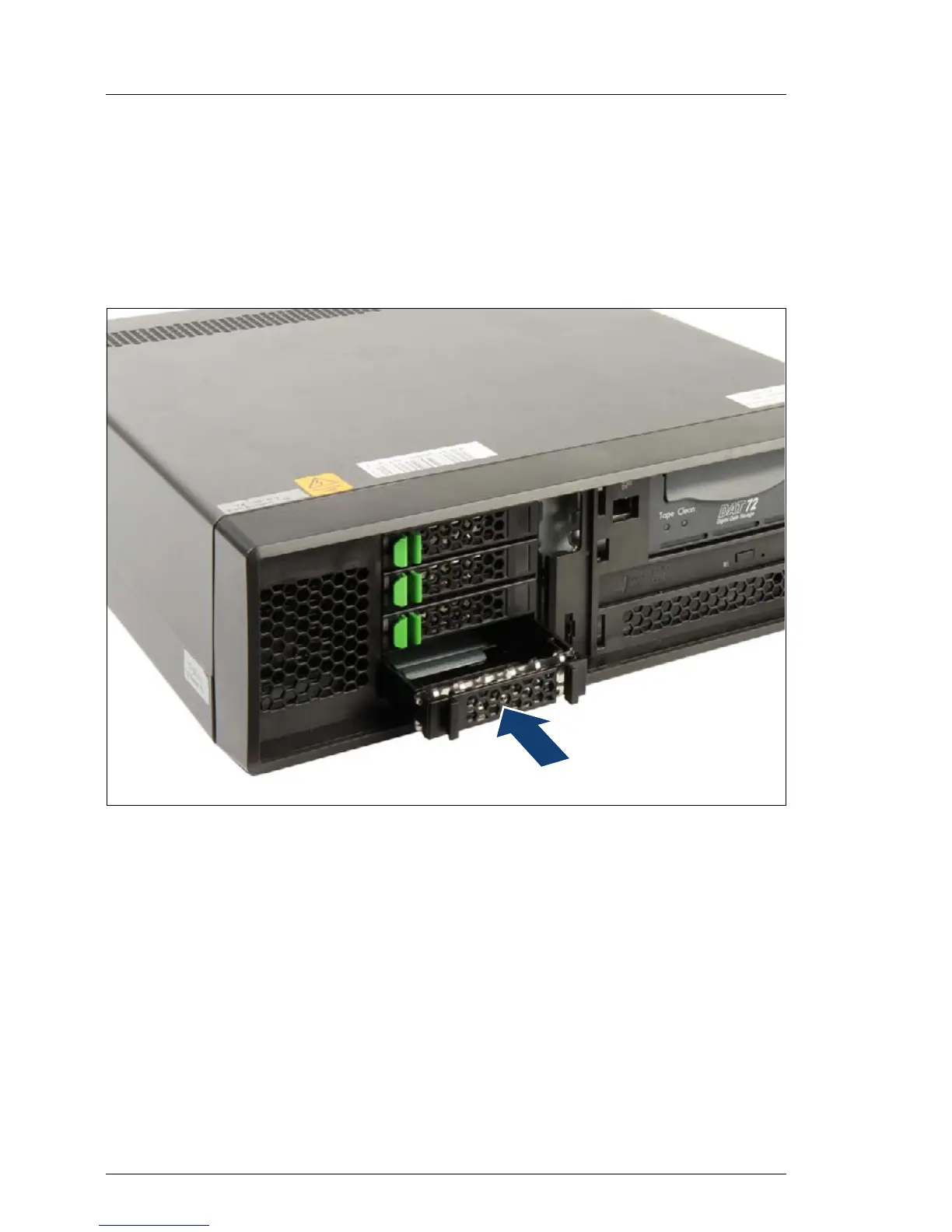

Figure 41: Installing a 2.5-inch HDD / SSD dummy module
Ê Insert the HDD dummy module into the drive bay and push it backward until
locks in place.
7.2.3.5 Concluding steps
Perform the following procedures to complete the task:
Ê Install the hard disk drive cover as described in section "Mounting the drive
cover" on page 71.
