344 Upgrade and Maintenance Manual TX120 S3
System board and components
Ê Shut down the server as described in section "Shutting down the server" on
page 58.
Ê Disconnect the AC power cord from the system.
Ê Remove the server cover as described in section "Opening the server" on
page 61.
14.3.3.3 Removing the TPM
Ê Remove the TPM board as described in section "Removing the TPM board"
on page 339.
Ê Leave the TPM spacer on the system board when removing the defective
TPM board.
14.3.3.4 Re-installing the TPM

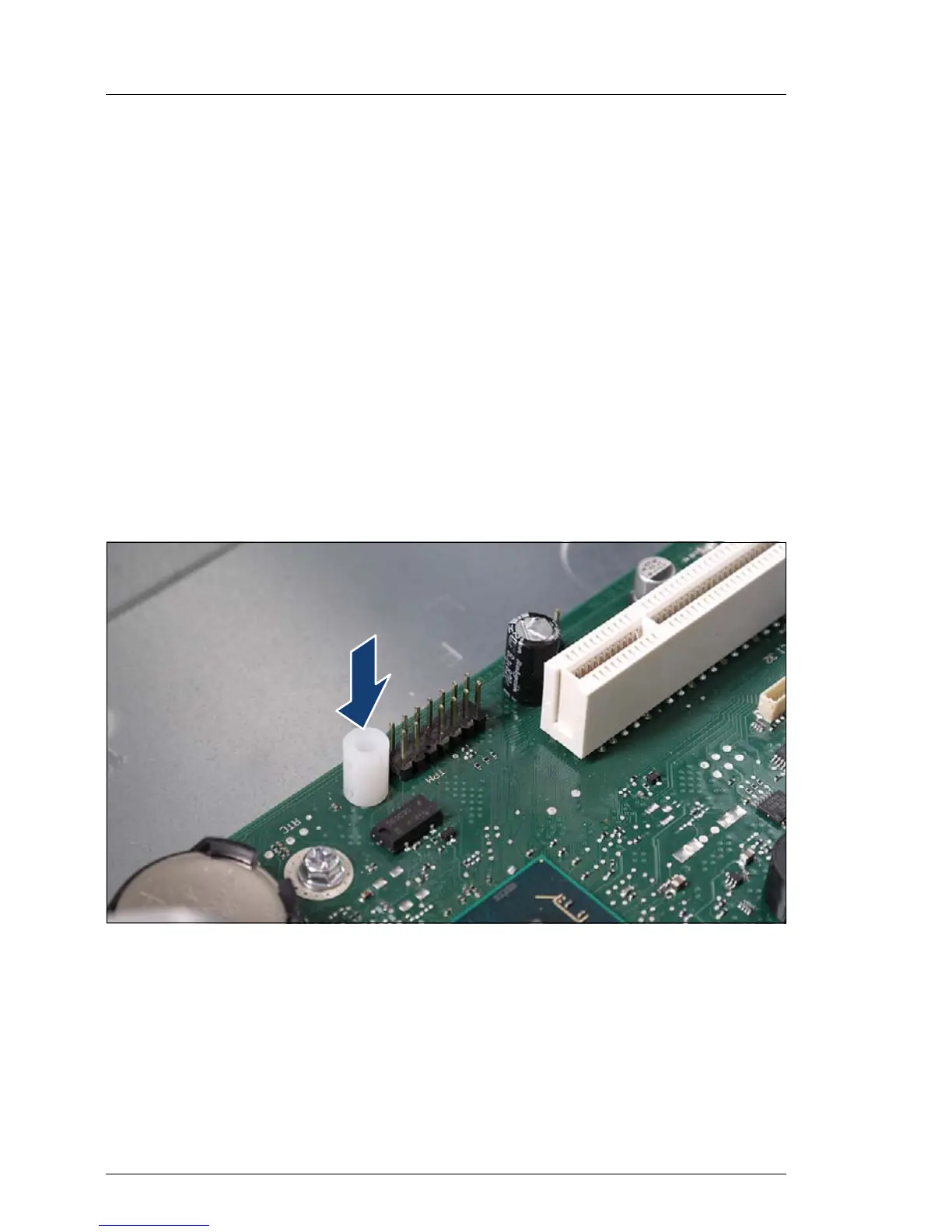

Figure 209: TPM spacer
Ê The TPM spacer is already present on the system board.
Ê Re-install the TPM board as described in section "Installing the TPM board"
on page 333.
