352 Upgrade and Maintenance Manual TX120 S3
System board and components
14.4.4 Installing the system board
14.4.4.1 Mounting the system board

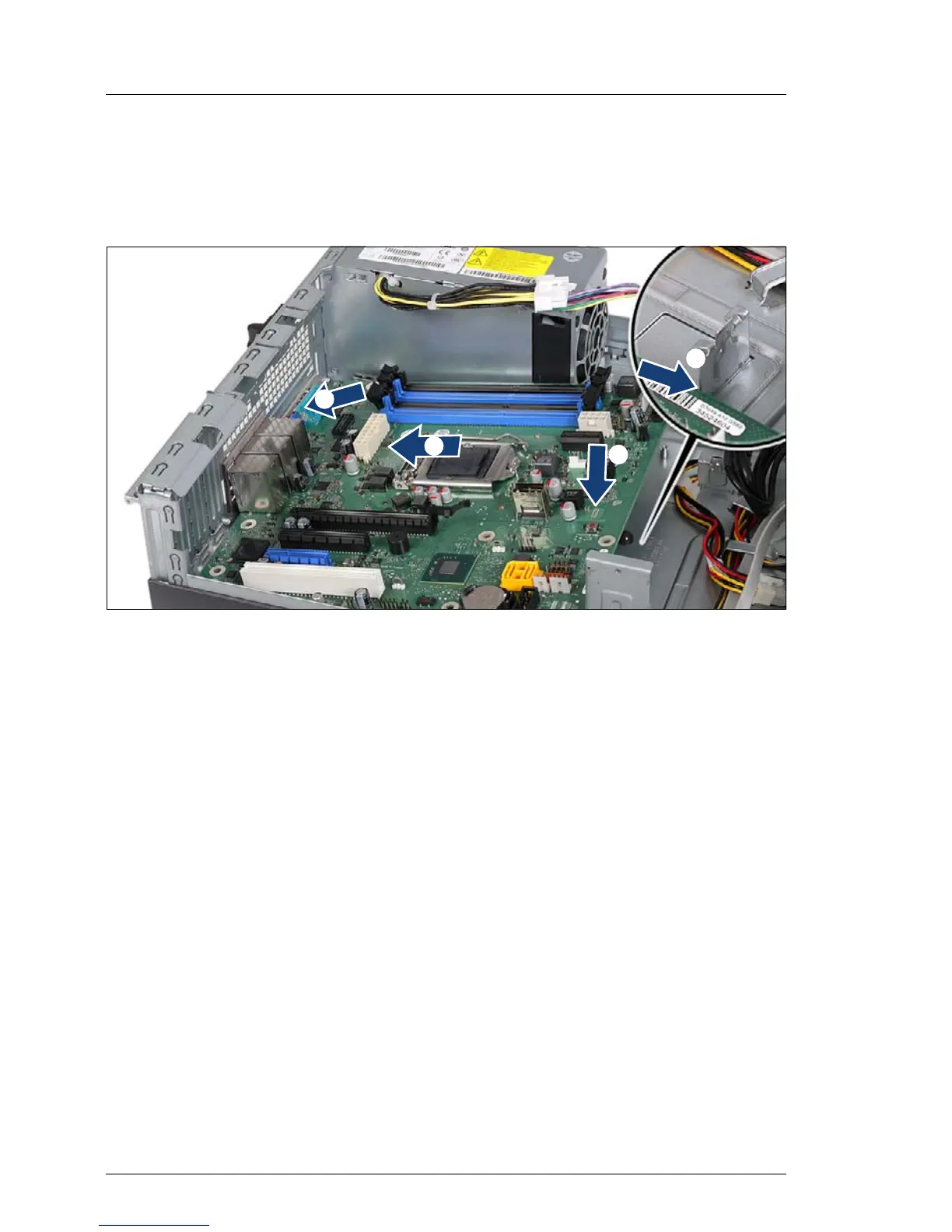

Figure 212: Installing the system board (A)
Ê Hold the new system board by the memory module ejectors and a PCI slot.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis (1).
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel (2).
Ê Lower the system board onto the centering bolts (3).
V CAUTION
Ensure that the system board is not scratched by the metal stop angle
(4).
/
0
1
2
