TX120 S3 Upgrade and Maintenance Manual 353
System board and components

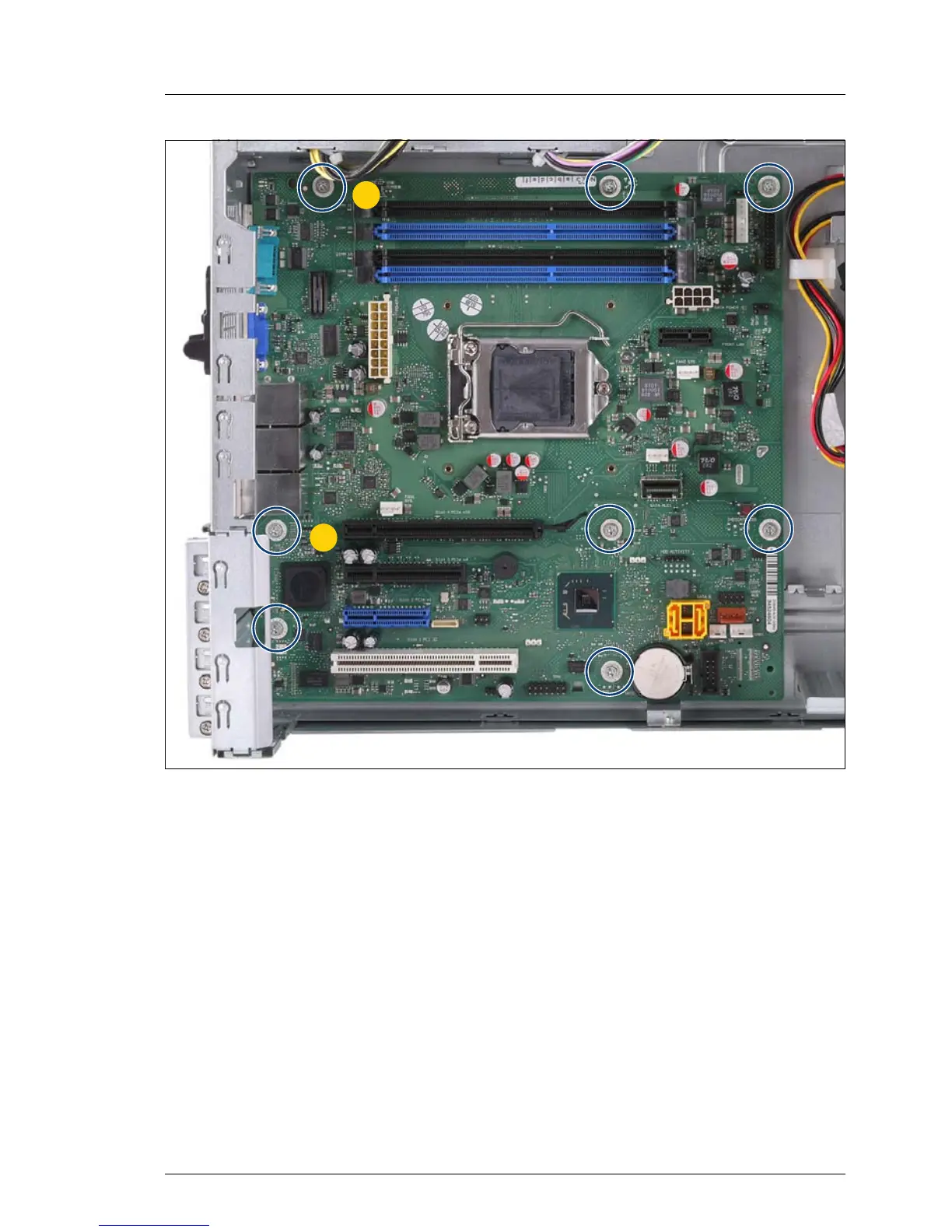

Figure 213: Installing the system board (B)
Ê Ensure that the system board is properly seated on both centering bolts (C).
Ê Secure the system board with eight screws (M3 x 6 mm, C26192-Y10-C68)
(see circles).
I Screw torque: 0.6 Nm (not applicable for the Japanese market)
Tighten the screws in a cross diagonal pattern.
Ê Verify the settings on the new system board (jumpers). For a detailed
description, please refer to section "Onboard settings" on page 429.
C
C
C
C
