400 Upgrade and Maintenance Manual TX120 S3
Cables
15.6.3.2 Installing SAS / SATA backplane cables

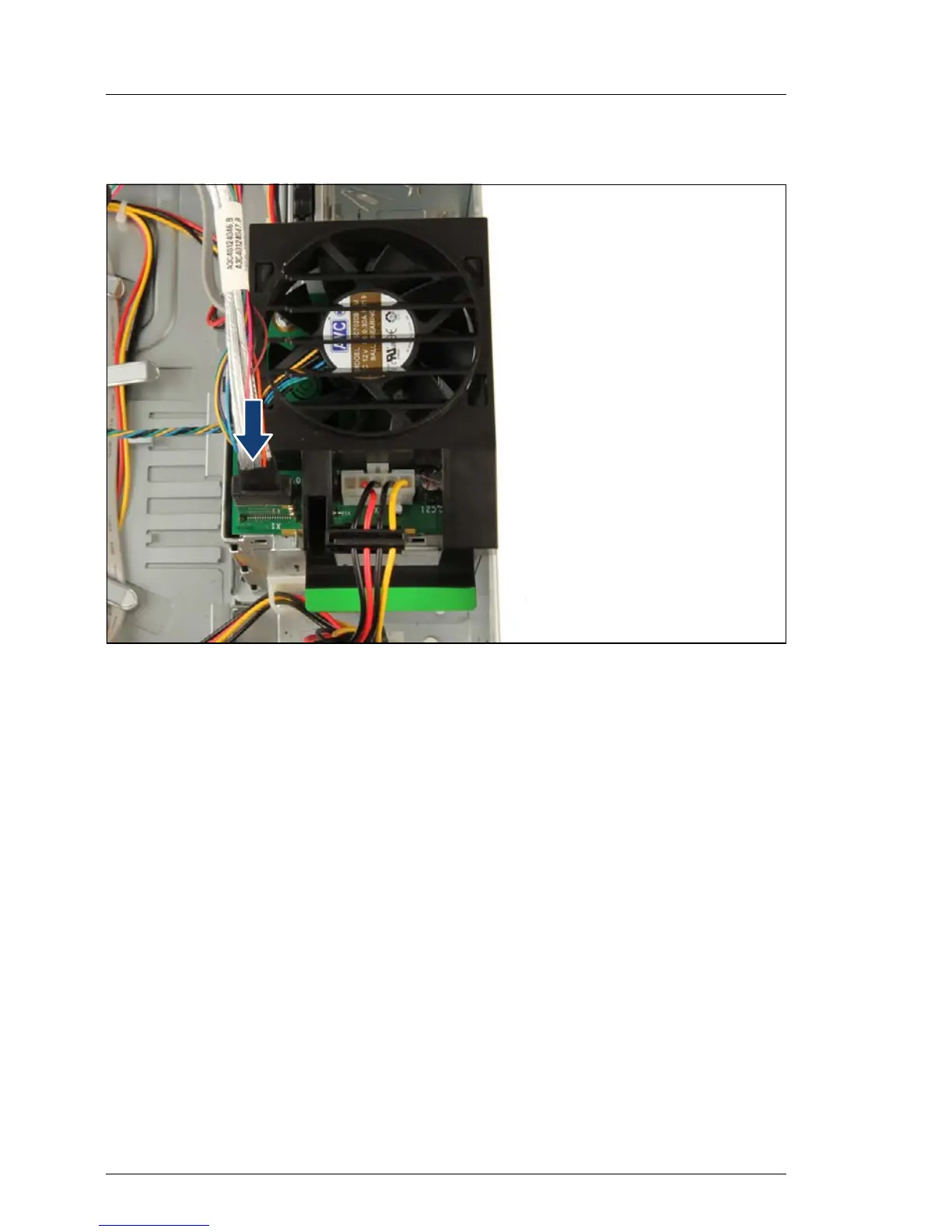

Figure 258: Installing the SAS / SATA cables (2.5-inch HDD model) (A)
Ê Reconnect the new SAS / SATA cable to the 2.5-inch HDD SAS / SATA
backplane:
