Fujitsu PRIMERGY TX120 S3 Upgrade And Maintenance Manual

TX120 S3 Upgrade and Maintenance Manual 399
Cables

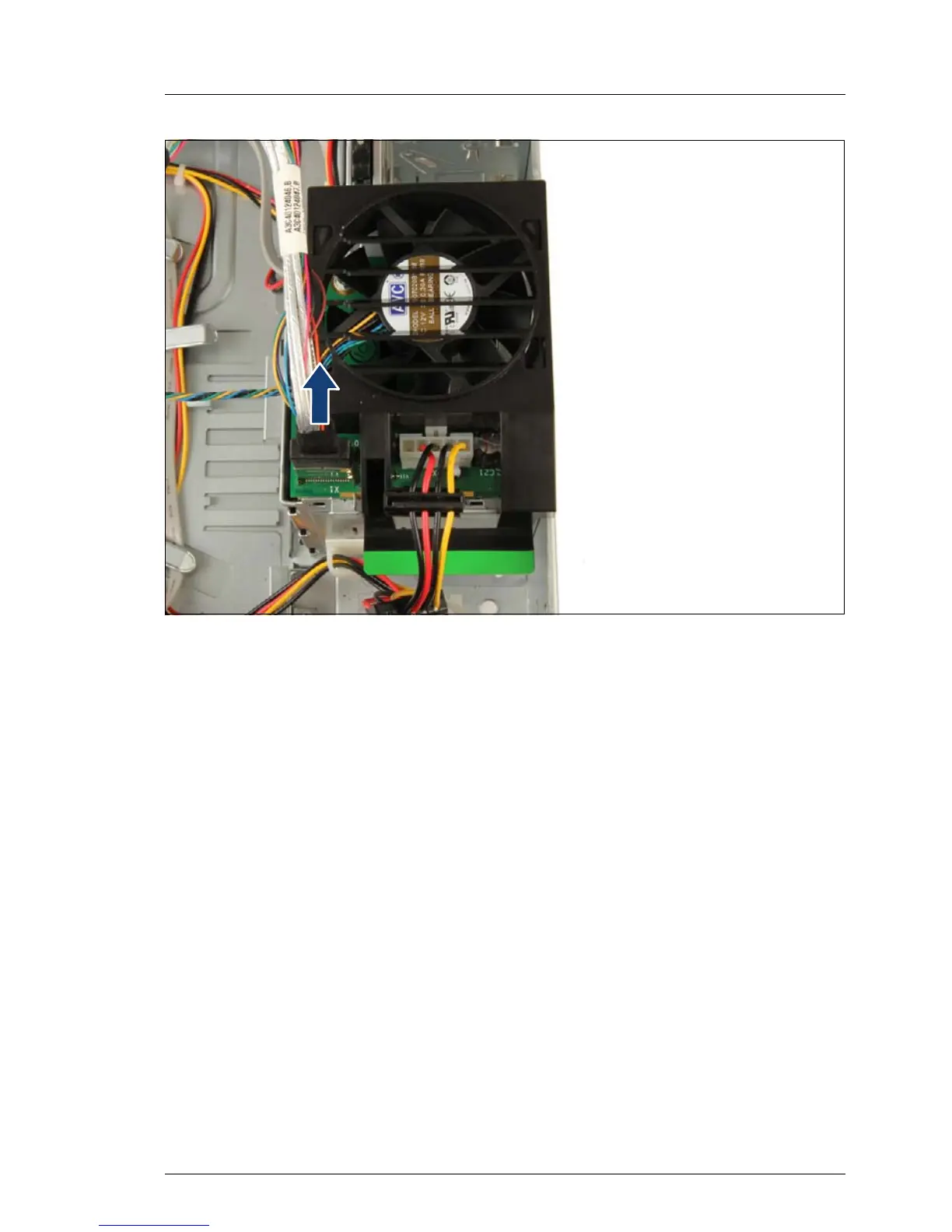

Figure 257: Removing the SAS / SATA cables (2.5-inch HDD model) (B)
Ê Disconnect the SAS / SATA cable from the 2.5-inch HDD SAS / SATA
backplane:
– SAS / SATA cable connected to SAS controller connector MLC1 from
primary backplane connectors X1
– SAS / SATA cable connected to SAS controller connector MLC2 from
secondary backplane connectors X1
