8.2.2 Replacing the HDD fan module for 2.5-inch version
I Your system can be equipped with an additional air duct between the
HDD fan module and the SAS / SATA backplane. The procedure for
replacing the HDD fan module is the same as without the air duct
because the air duct can remain in place.

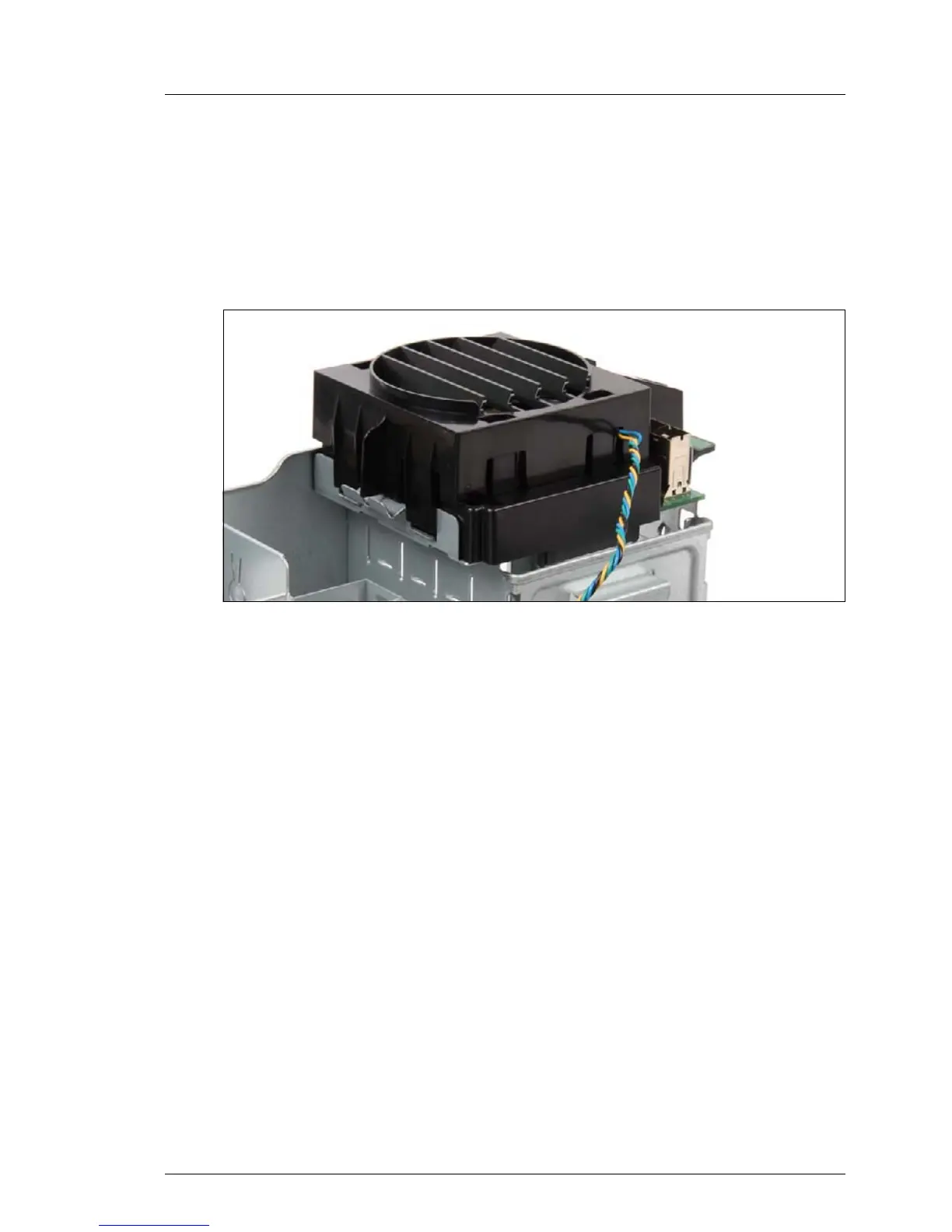

Figure 72: Position of the additional air duct
8.2.2.1 Required tools
● Preliminary and concluding steps: tool-less
● Replacing the fan module: tool-less
8.2.2.2 Preliminary steps
Before replacing the HDD fan module, perform the following steps:
Ê Locate the defective server as described in section "Locating the defective
server" on page 50.
Ê Shut down the defective server as described in section "Shutting down the
server" on page 58.
Ê Disconnect the AC power cord from the system.
Ê Remove the server cover as described in section "Opening the server" on
page 61.
Ê Open the front cage as described in section "Opening the front cage" on
page 66.
