TX120 S3
Upgrade and Maintenance Manual
323
System board and comp
onents
Ê
Remove the serv
er cover as described in section
"Opening the server" on
page
61
.
14.2.2.3
Removing the UFM board

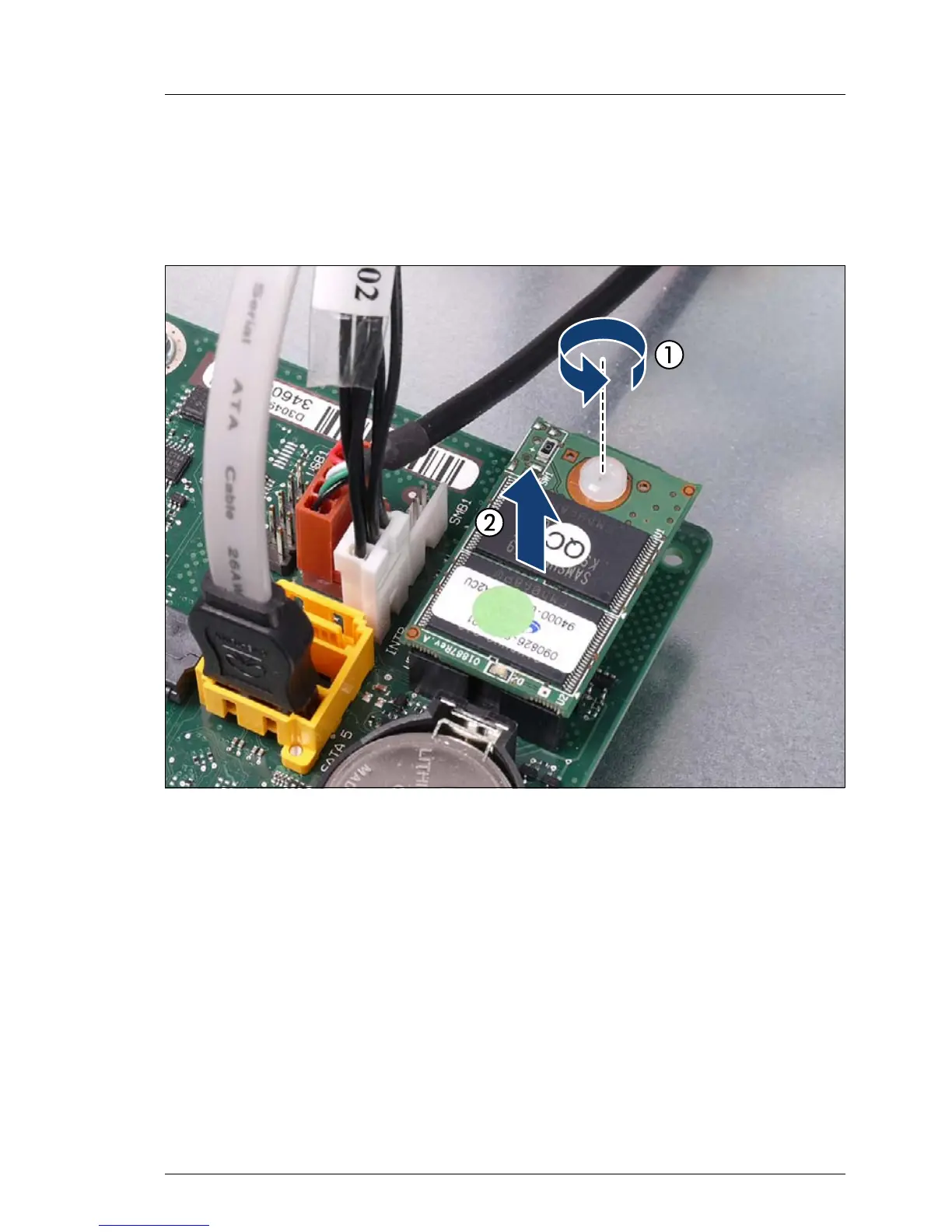

Figure 192: Removing the UFM board (A)
Ê
Remove the nylon screw on the defective UFM board (1).
Ê
Disconnect and remove the defective UFM board (2).
322
324
