TX120 S3 Upgrade and Maintenance Manual 131
Hard disk drives / solid state drives
7.3 3.5-inch hard disk drives
7.3.1 Mounting order for 3.5-inch HDDs
Maximum configuration: 2x 3.5-inch HDDs

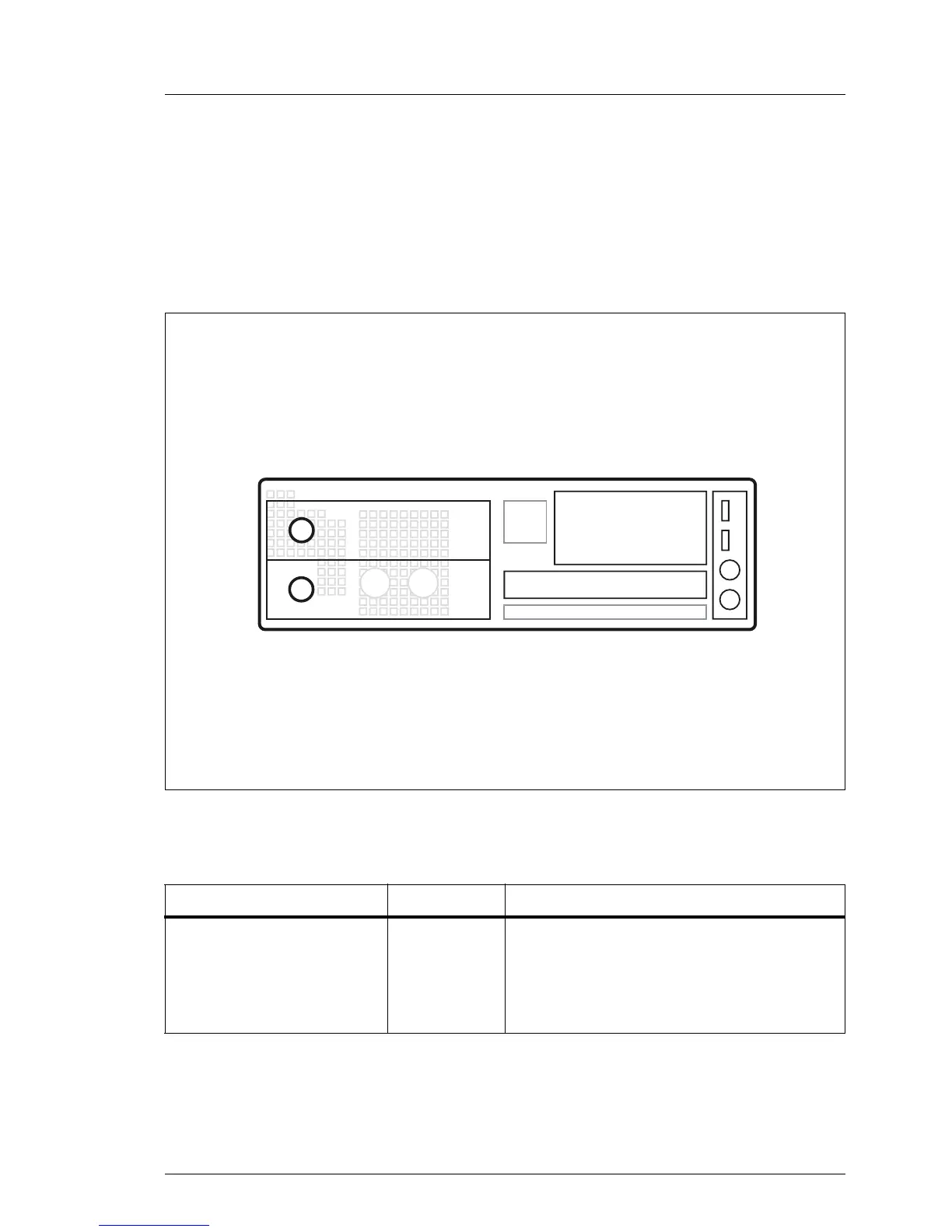

Figure 42: 3.5-inch HDD mounting order
SAS connectivity
Controller Channel Connection
Onboard 1
Drives 1-2
SATA cable (Y3963-V101) from
HDD backplane connector X1 to
system board connector SATA MLC 1.
1
2
