Fujitsu PRIMERGY TX120 S3 Upgrade And Maintenance Manual

146 Upgrade and Maintenance Manual TX120 S3
Hard disk drives / solid state drives
7.4.1.4 Removing the 2.5-inch HDD SAS / SATA backplane

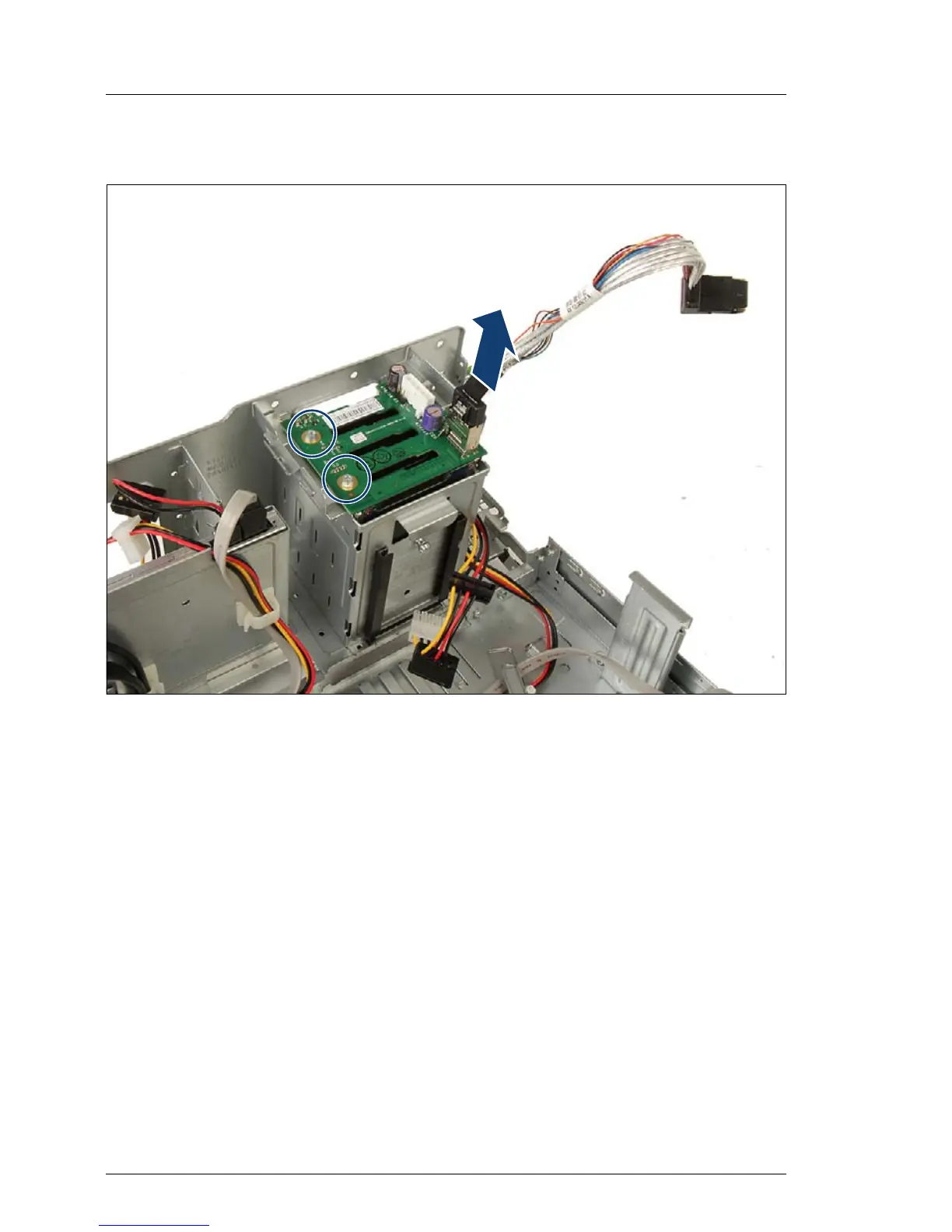

Figure 53: Disconnecting cables from the 2.5-inch HDD SAS / SATA backplane
Ê Disconnect the SATA cables from the 2.5-inch HDD SAS / SATA backplane.
Ê Remove the two screws of the defective 2.5-inch HDD SAS / SATA
backplane (see circles).
