TX120 S3 Upgrade and Maintenance Manual 147
Hard disk drives / solid state drives

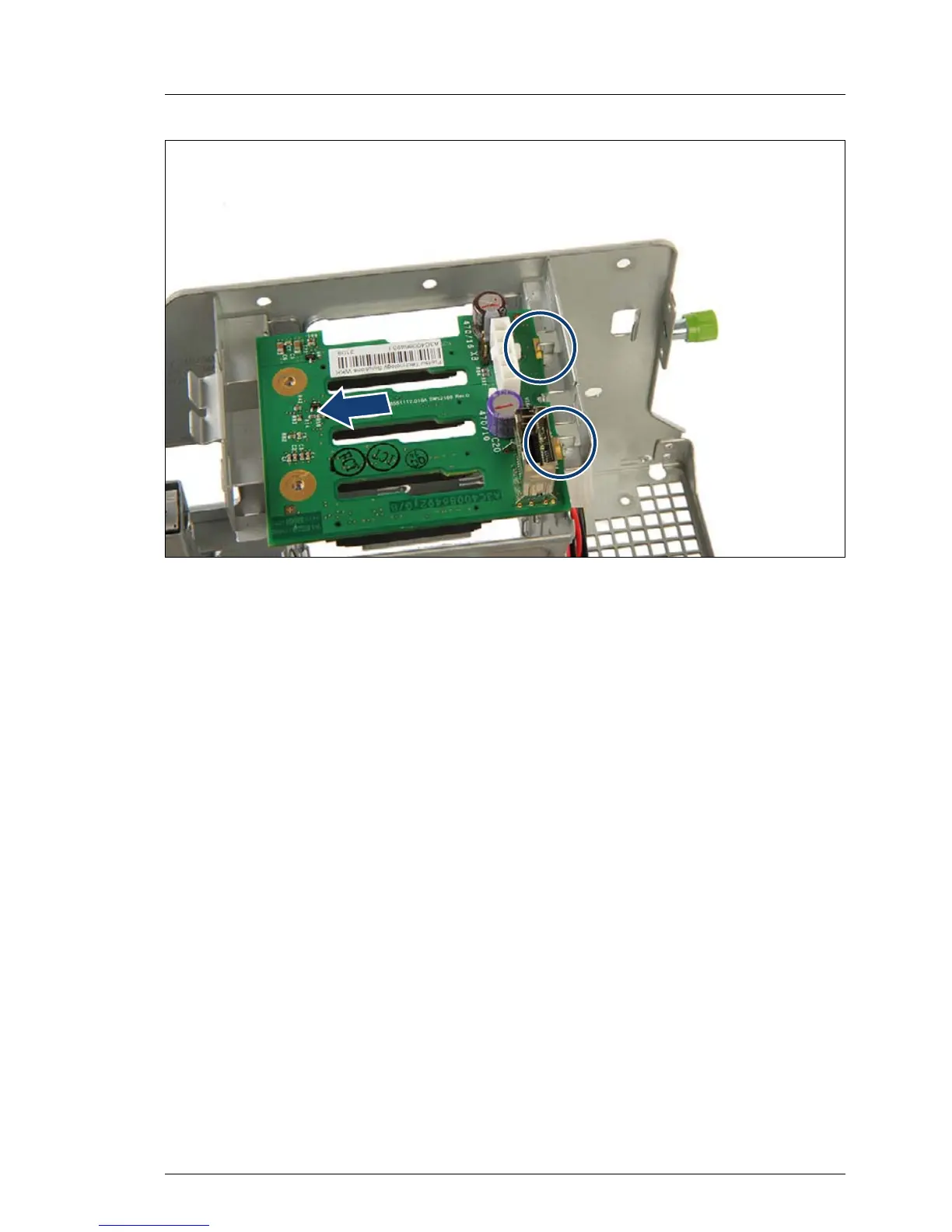

Figure 54: Removing the 2.5-inch HDD SAS / SATA backplane
Ê At a slight angle, unhinge the 2.5-inch HDD SAS / SATA backplane from the
guides on the front cage and remove it.
