382 Upgrade and Maintenance Manual TX120 S3
Cables

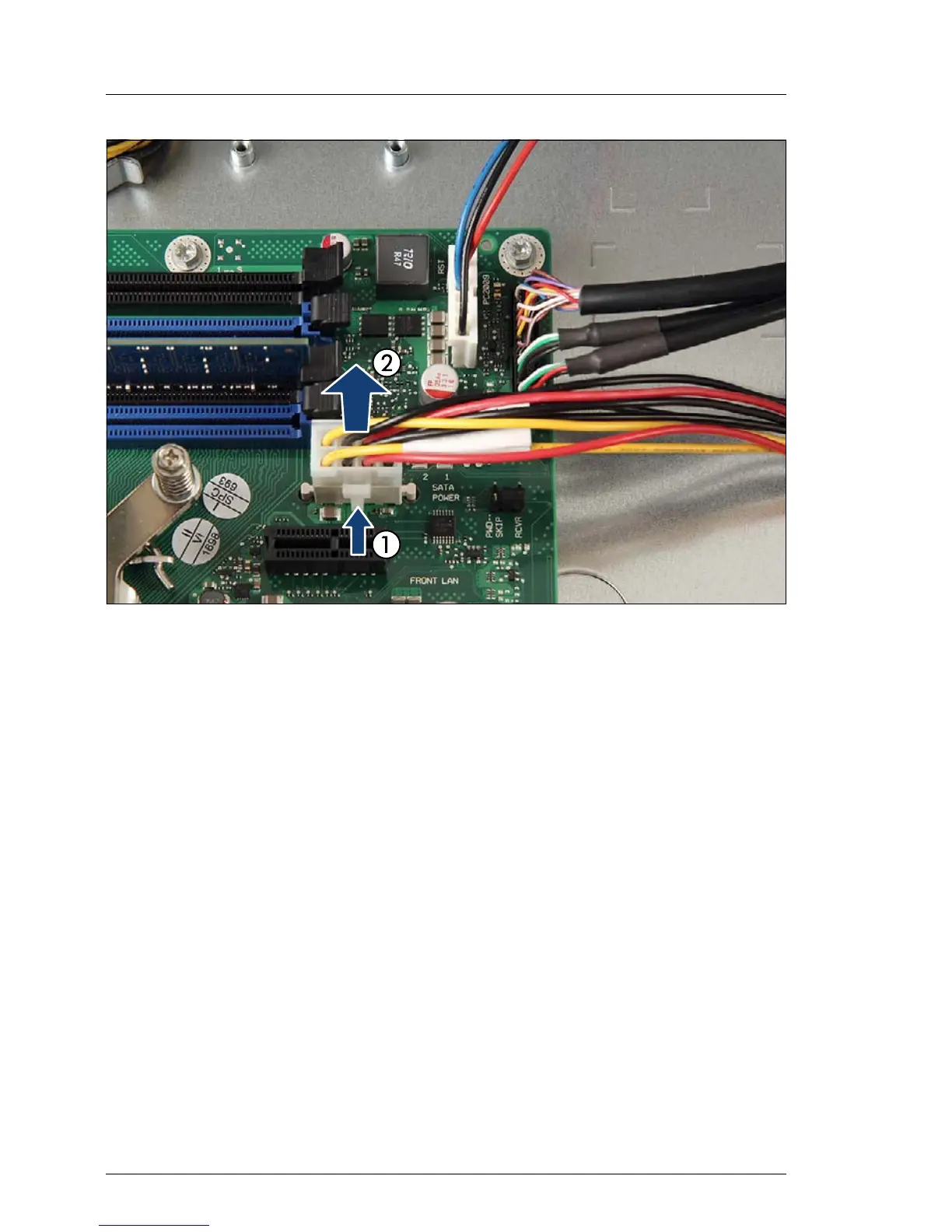

Figure 237: Disconnecting the power cable from the system board
Ê While pressing the release latch on the connector (1), disconnect the power
cable from the SATA POWER connector on the system board (2).
