TX120 S3 Upgrade and Maintenance Manual 415
Cables

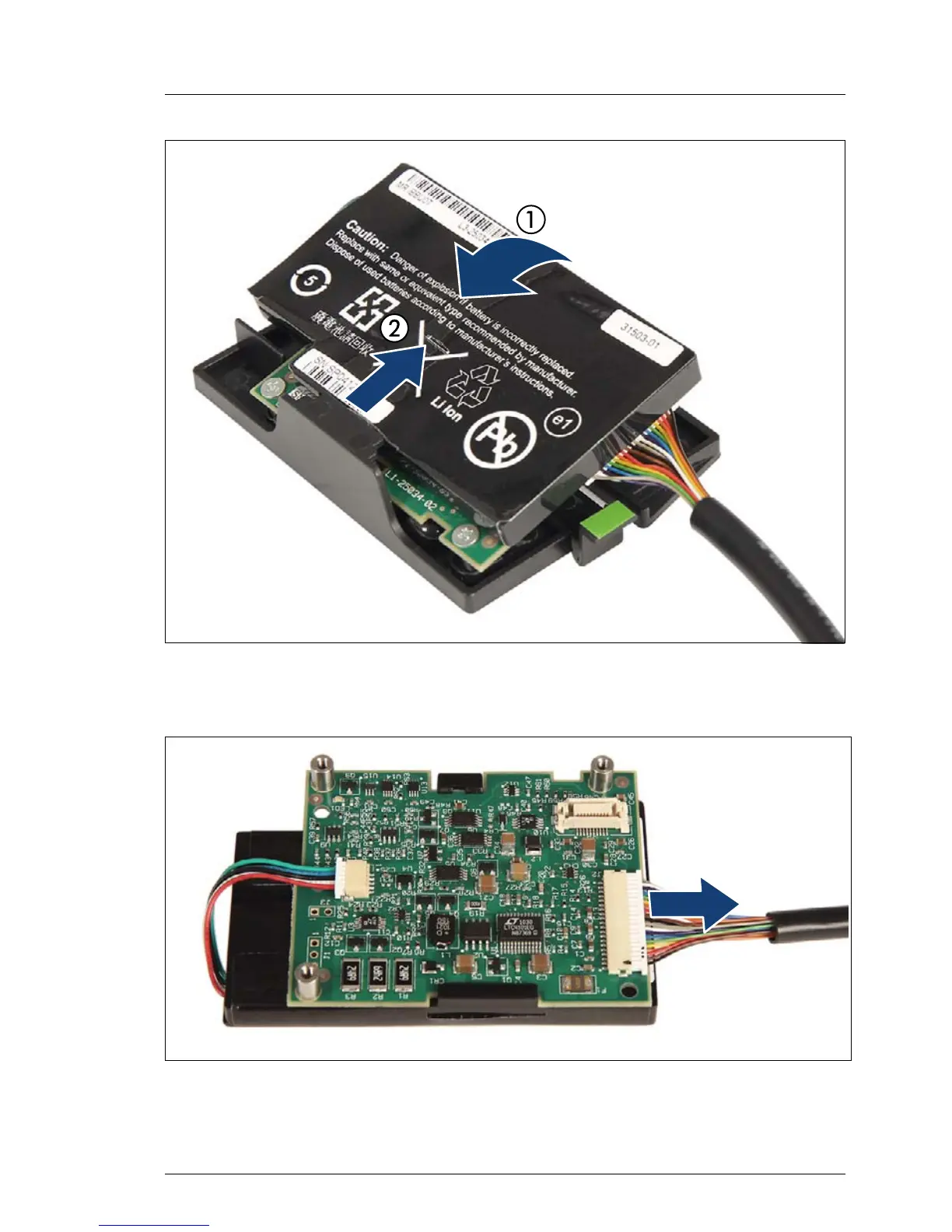

Figure 272: Removing the BBU from the BBU holder
Ê Fold up the BBU (1) and at a slight angle remove it from the BBU holder (2).
Figure 273: Disconnecting the BBU cable from the BBU
Ê Carefully disconnect the BBU cable from the BBU.
