284 Upgrade and Maintenance Manual TX120 S3
Accessible drives

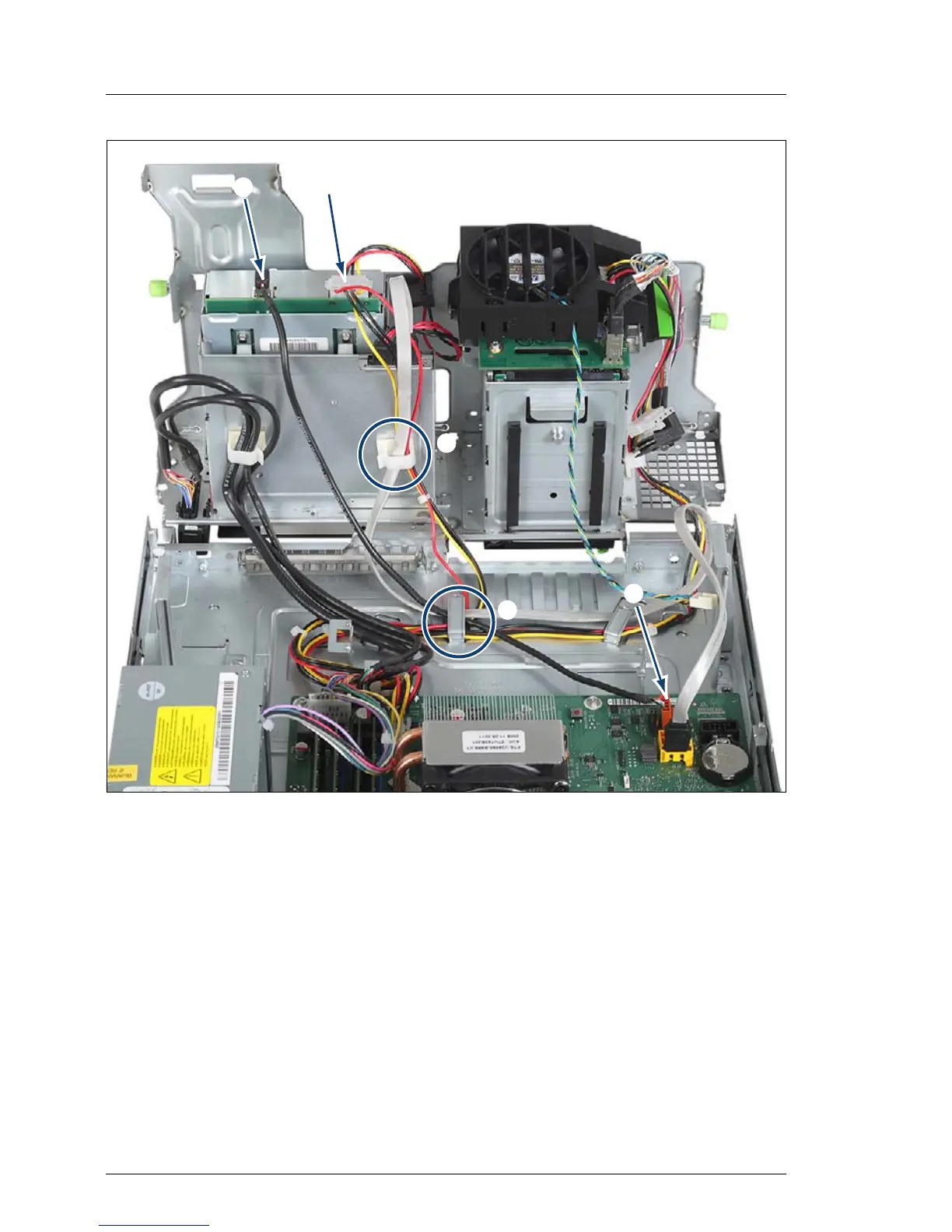

Figure 162: Connecting cables to the backup drive
Ê Connect cables to the backup drive.
1 SATA power cable T26139-Y4012-V501 connector P2 (1)
2 USB cable Y3973-V91 Type B connector (2)
Ê Connect the USB cable to the system board (3).
I Notes on RDX drive USB cabling:
– A USB 2.0 RDX drive may be replaced by a USB 3.0 RDX drive
with previous cabling.
– A USB 3.0 RDX drive may be connected to a USB 2.0 cable with
limited performance.
/
