Fujitsu PRIMERGY TX120 S3 - Page 283

TX120 S3 Upgrade and Maintenance Manual 283
Accessible drives

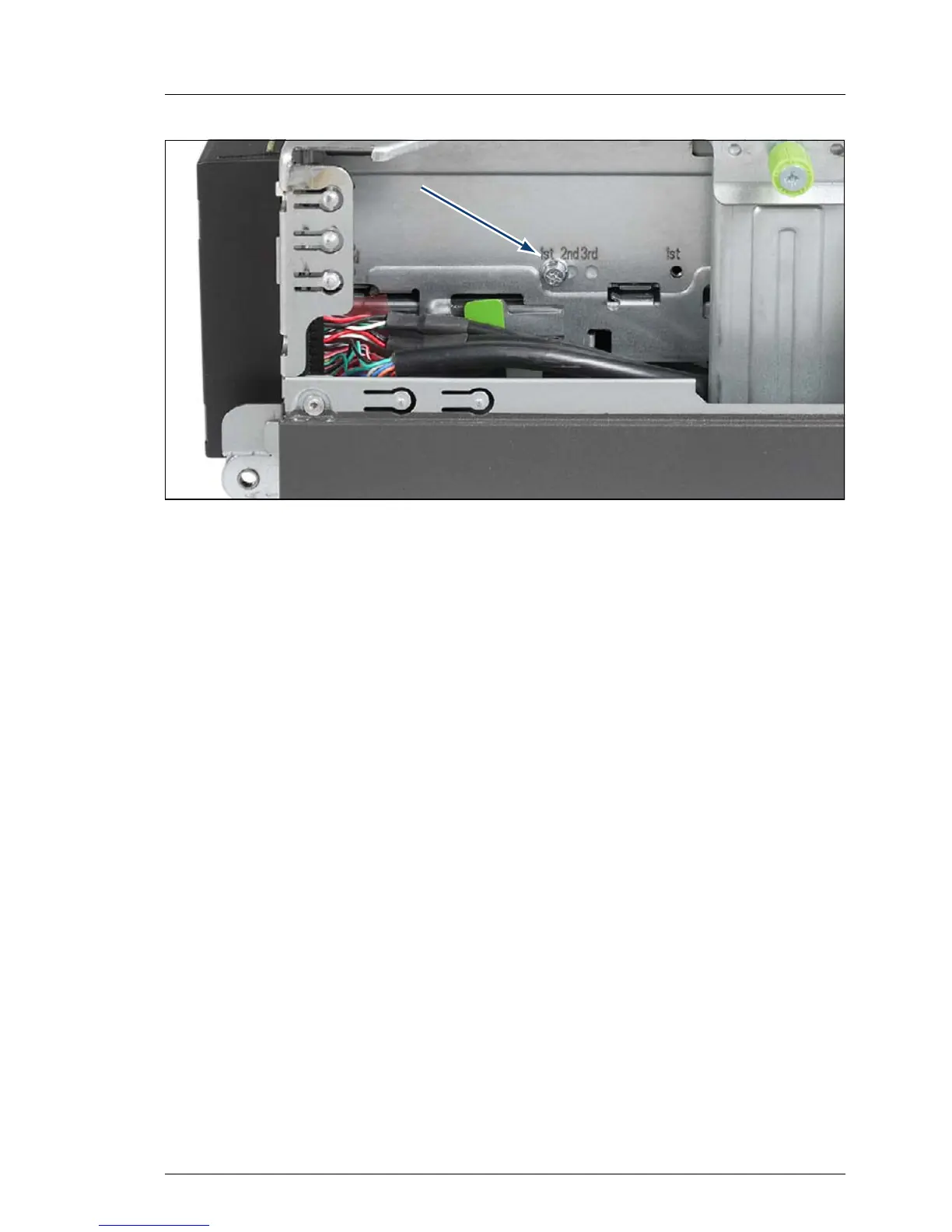

Figure 161: Inserting the screw
Ê Secure the backup drive to the drive cage with one screw (M3 x 4.5 mm).
I Use the screw hole marked "1st".
Ê Open the front cage as described in section "Opening the front cage" on
page 66.
