288 Upgrade and Maintenance Manual TX120 S3
Accessible drives
Ê Remove the USB cable from the system board (3).
I Notes on RDX drive USB cabling:
If the backup drive is connected via an USB 3.0 interface card,
disconnect the USB cable from the interface card.
Ê Remove the SATA power cable from the cable clamps (circle 1) and
(circle 2).

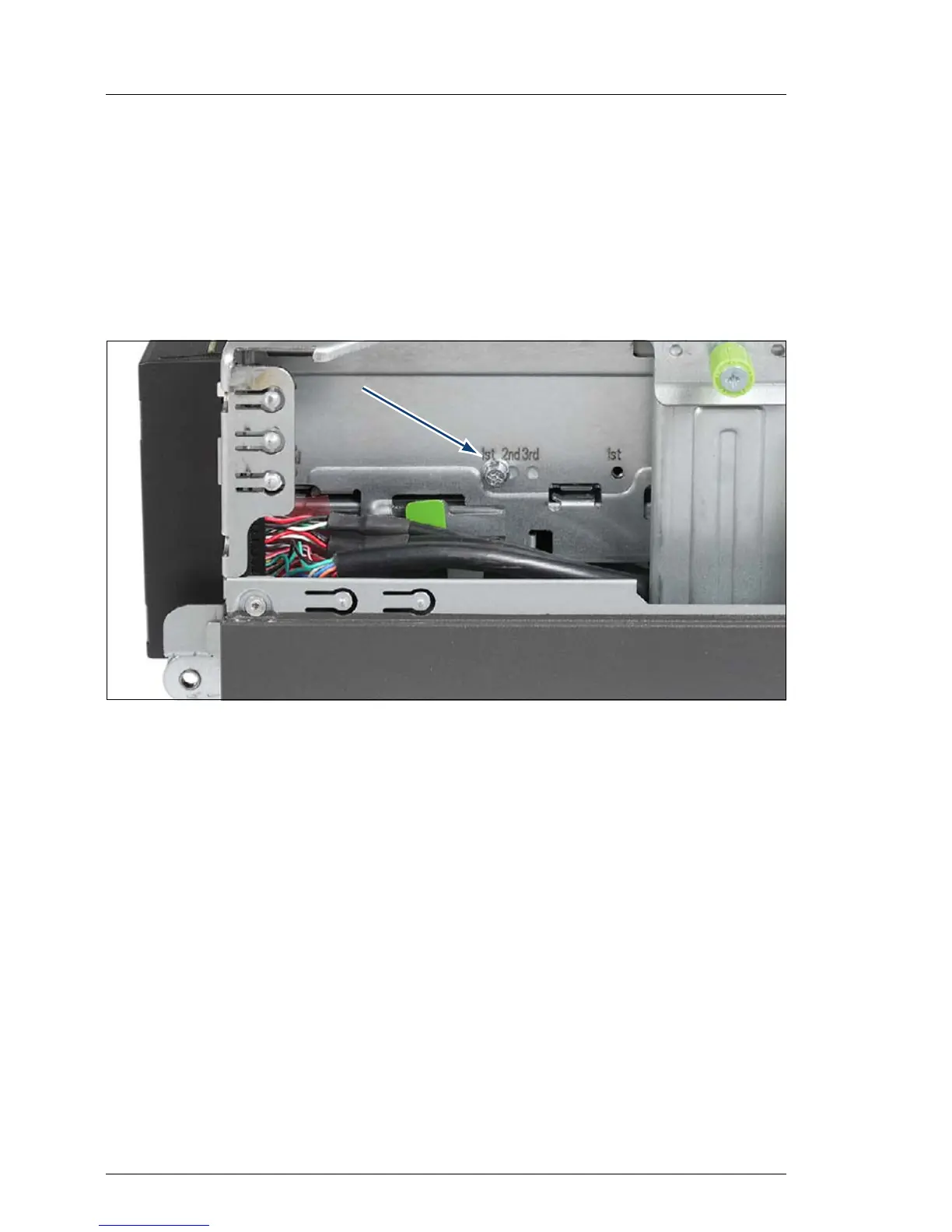

Figure 165: Removing screw from the backup drive
Ê Remove the screw.
