TX120 S3 Upgrade and Maintenance Manual 309
Front panel and LAN connecto
r
Ê Disconnect the front LAN cable from the front LAN board.
Ê Remove the front LAN board from the chassis.

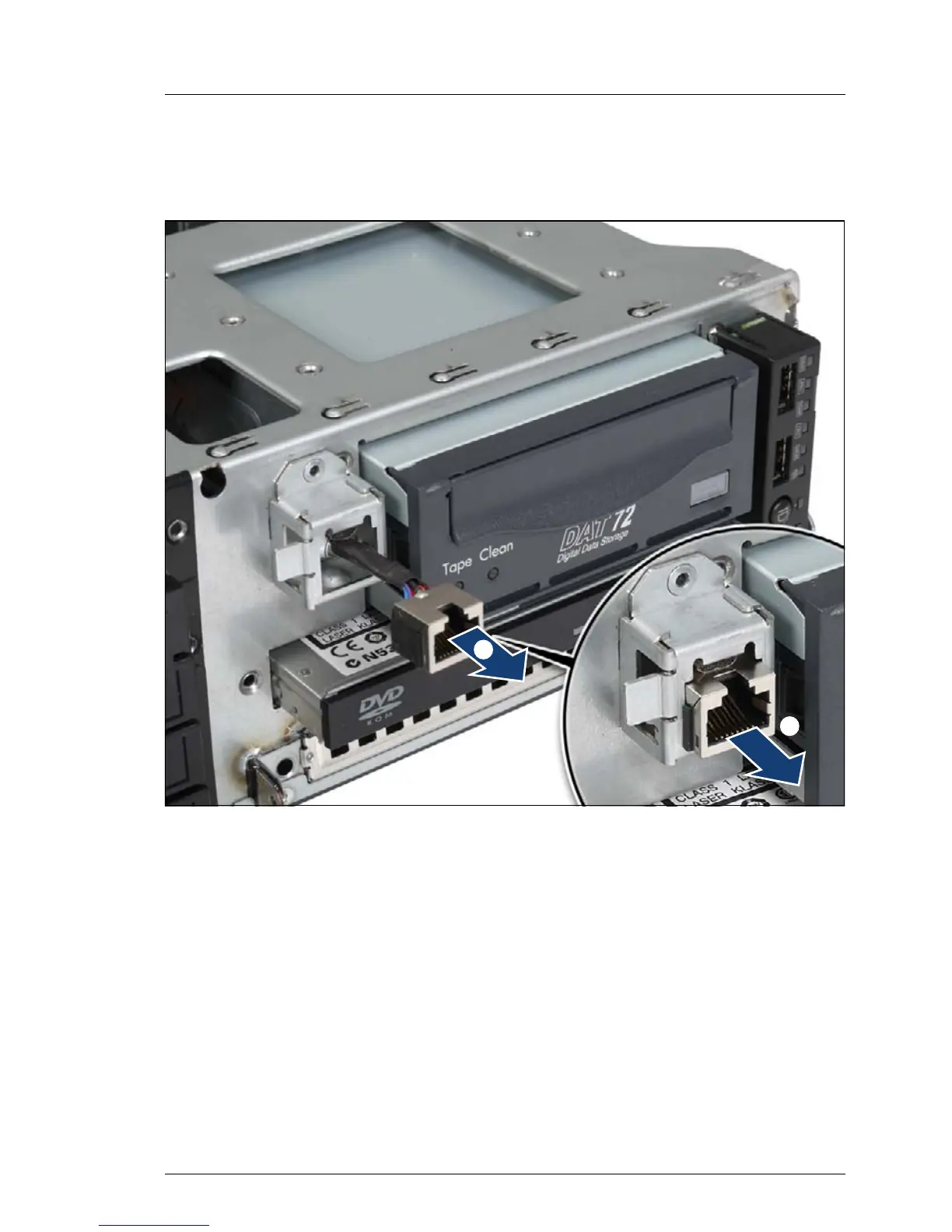

Figure 184: Removing the front LAN connector
Ê Carefully unlatch the front LAN cable connector from the mounting bracket
(1).
Ê Pull the front LAN cable out through the mounting bracket on the front panel
frame and remove it (2).
/
