TX120 S3 Upgrade and Maintenance Manual 159
System fan and HDD fan

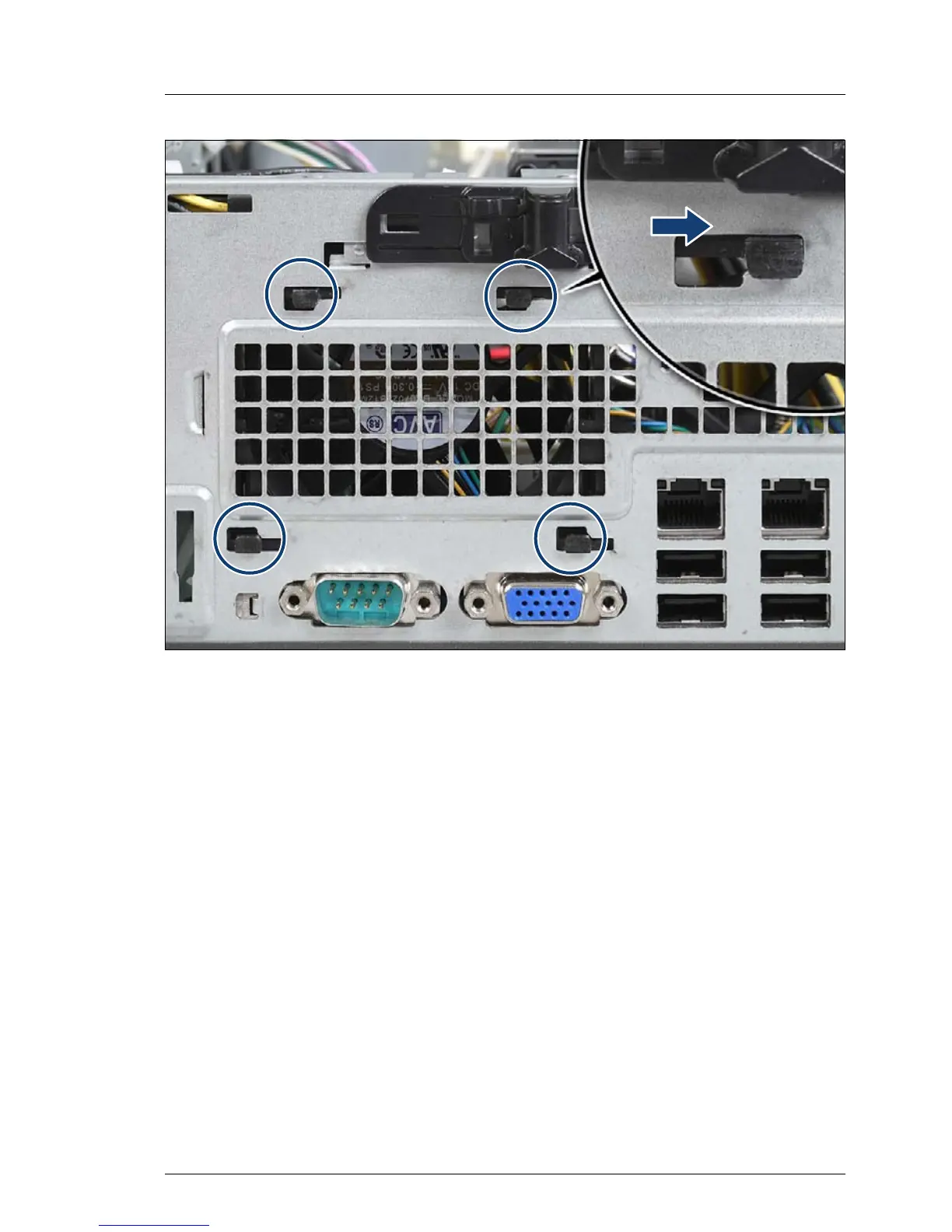

Figure 65: Installing the system fan module (B)
Ê Fit the four hooks on the fan module into the slots in the chassis (see blue
circles).
Ê Slide the system fan holder to the right as far as it will go until its hooks
engage with the narrow ends of the keyhole slots in the chassis (circles).
