TX120 S3 Upgrade and Maintenance Manual 387
Cables

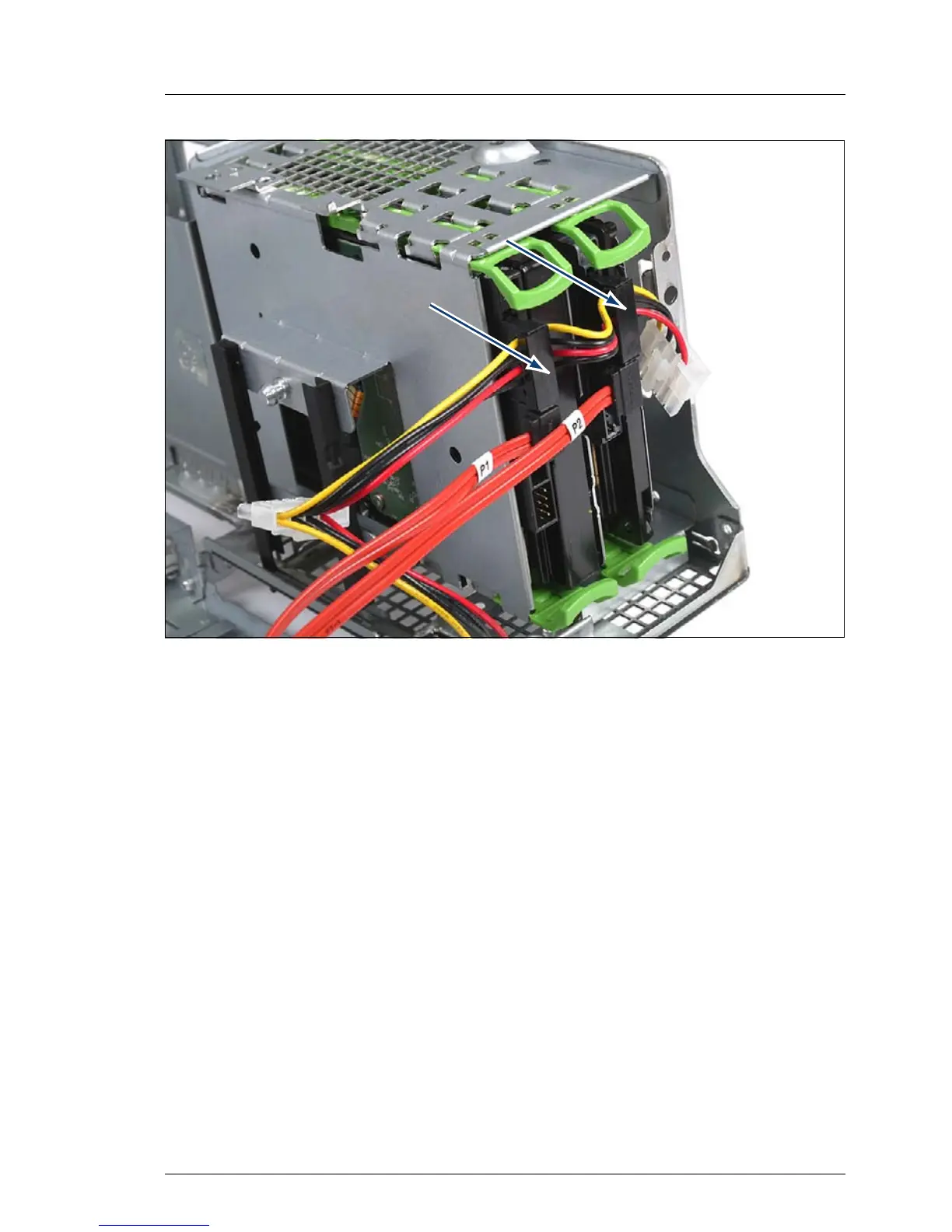

Figure 242: Disconnecting the power cable from the 3.5-inch HDD
Ê Disconnect the power cable connector P1 and P2 from 3.5-inch HDDs
Ê Remove the power cable from the chassis.
