392 Upgrade and Maintenance Manual TX120 S3
Cables

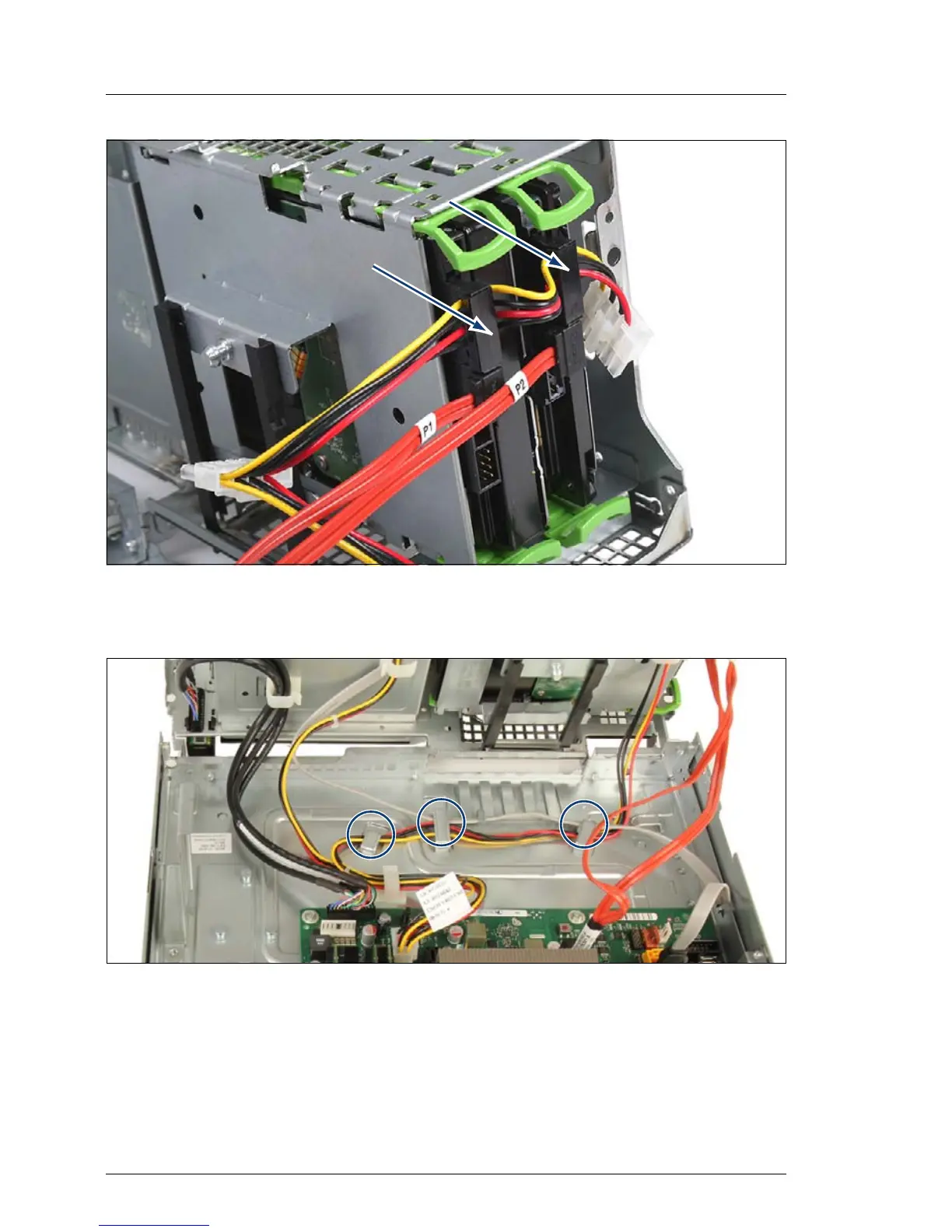

Figure 248: Connecting the power cable to the 3.5-inch HDDs
Ê Connect the power cable connector P7 and P8 to the 2.5-inch HDDs.
Figure 249: Connecting the power cable
Ê Run the power cable through the three cable clamps next to the drive bays
as shown.
