320 Upgrade and Maintenance Manual TX120 S3
System board and components

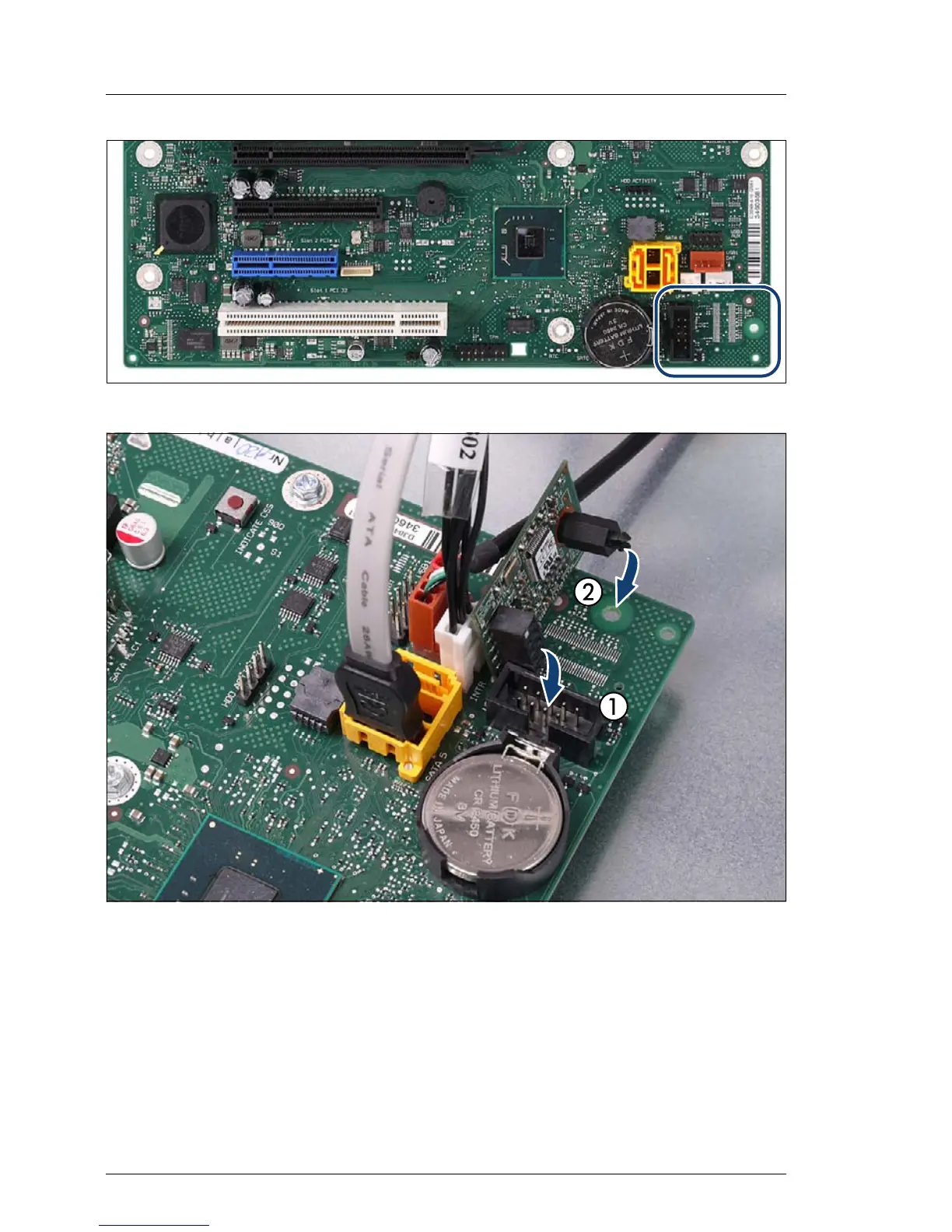

Figure 189: UFM mounting location
Figure 190: UFM mounting location (detail)
UFM mounting location on the system board:
1 UFM connector
2 Cut-out for UFM spacer
