TX120 S3 Upgrade and Maintenance Manual 139
Hard disk drives / solid state drives

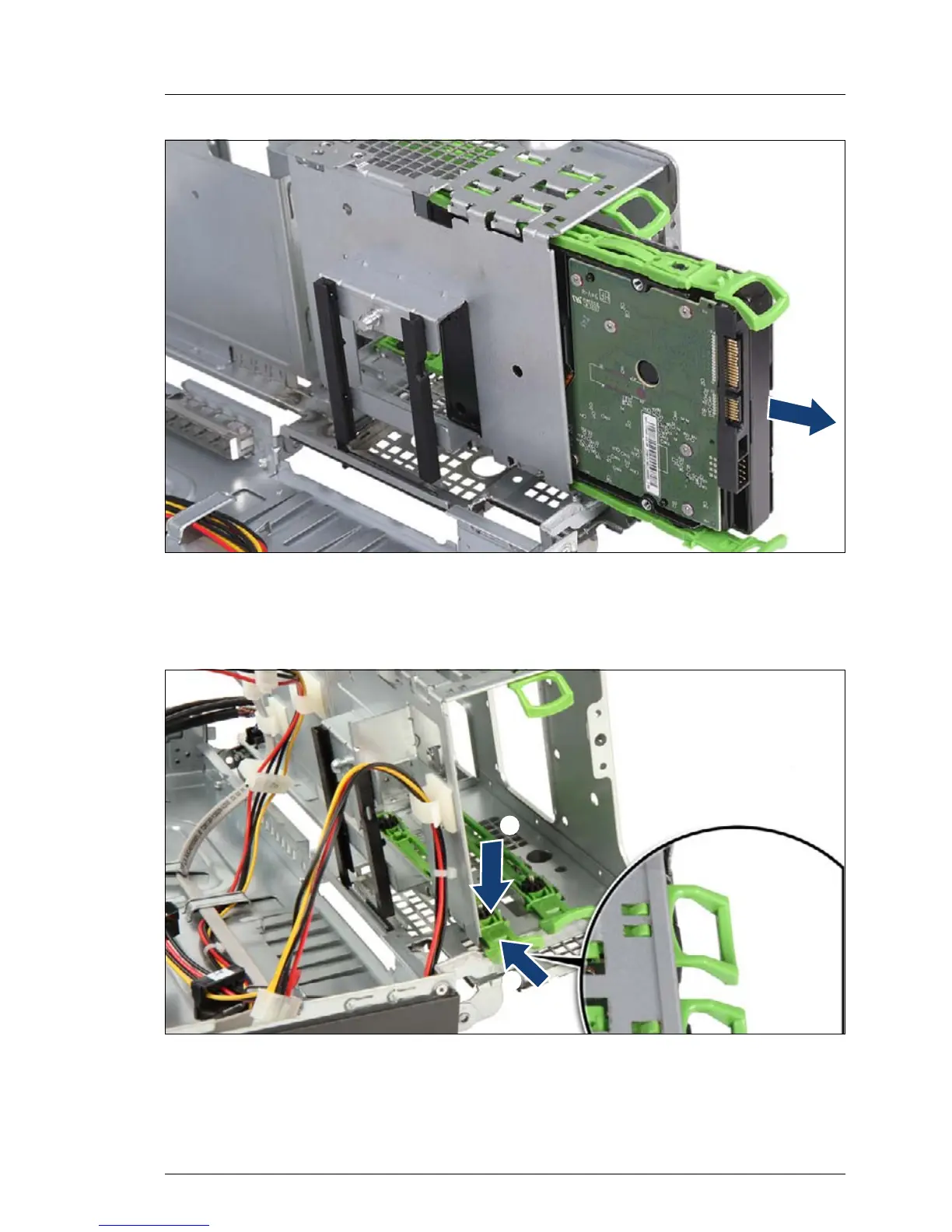

Figure 48: Removing a 3.5-inch HDD module
Ê Pull the HDD module with the two green handles of the Easyclick rails
completely out of its bay.
Figure 49: Inserting the Easyclick rails
Ê Insert the Easyclick rails into the bay (1).
Ê Push the Easyclick rails in the direction of the arrow (2).
/
