TX120 S3 Upgrade and Maintenance Manual 169
System fan and HDD fan

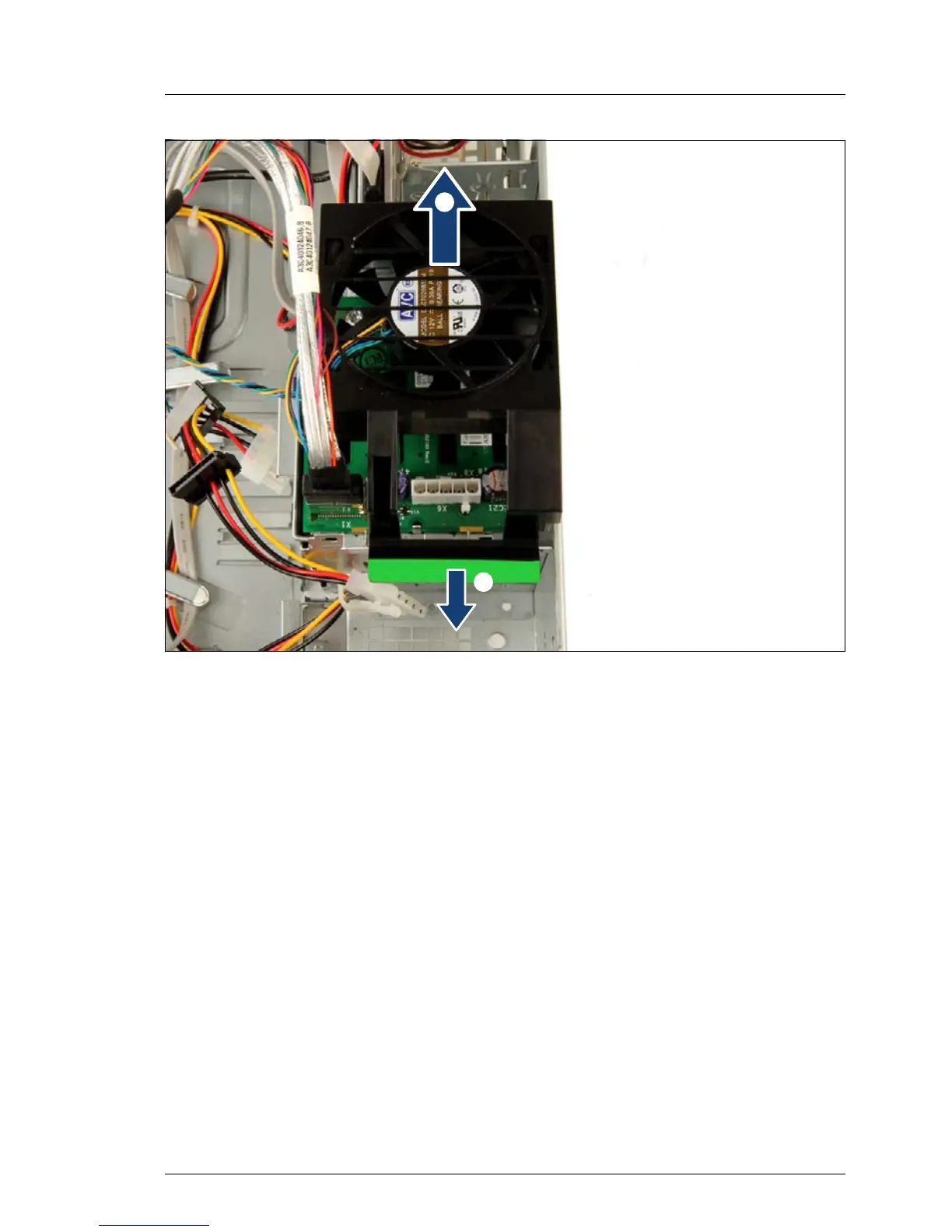

Figure 74: Removing the HDD fan module
Ê Push on the locking lever (1) to disengage the HDD fan module holder out
of the retaining brackets.
Ê Lift the HDD fan module holder with the fan module out of the chassis (2).
/
