190 Upgrade and Maintenance Manual TX120 S3
Expansion cards and backup units

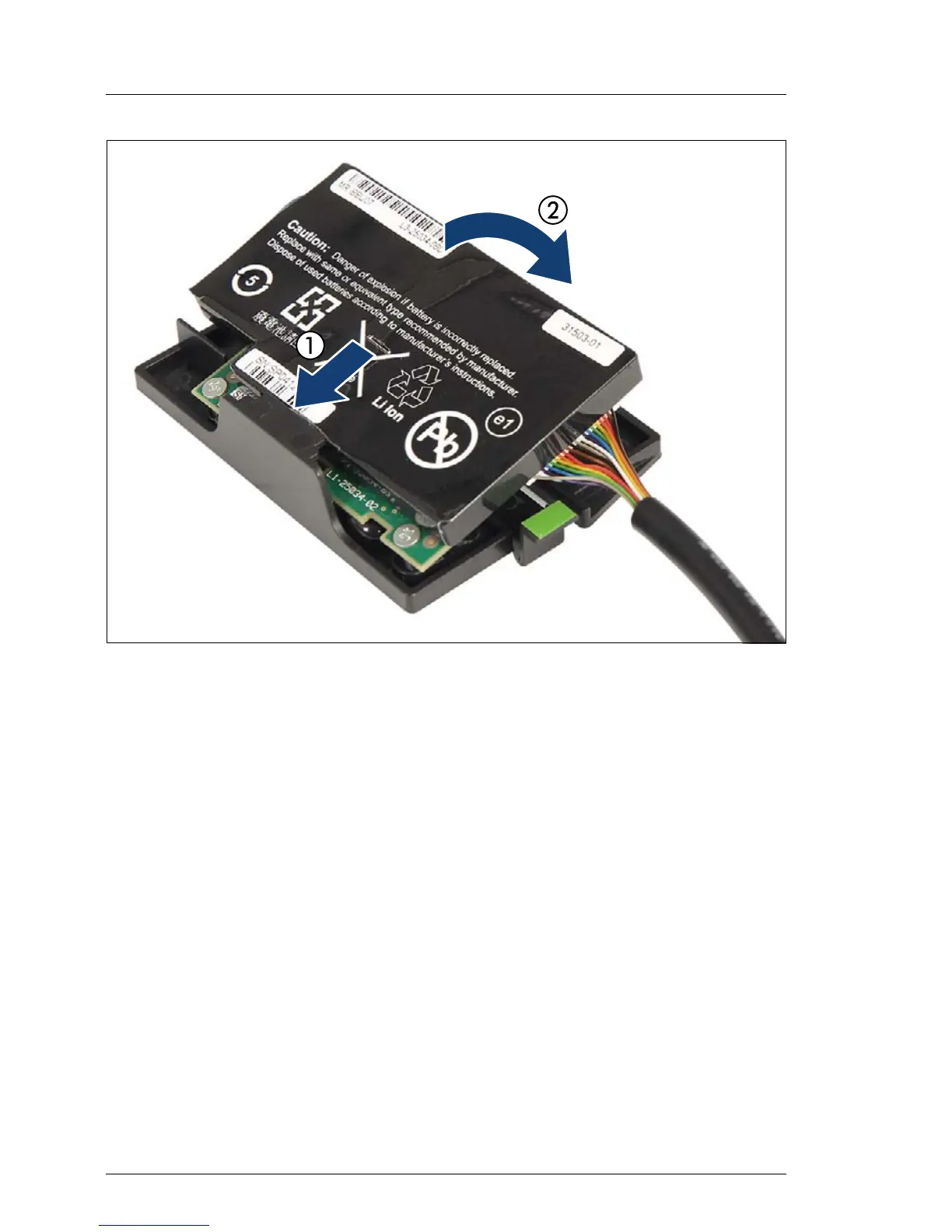

Figure 86: Installing the BBU in the BBU holder
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (C26361-K1337-C235) as shown (1).
Ê Fold down the BBU until it locks in place (2).
