192 Upgrade and Maintenance Manual TX120 S3
Expansion cards and backup units
iBBU8

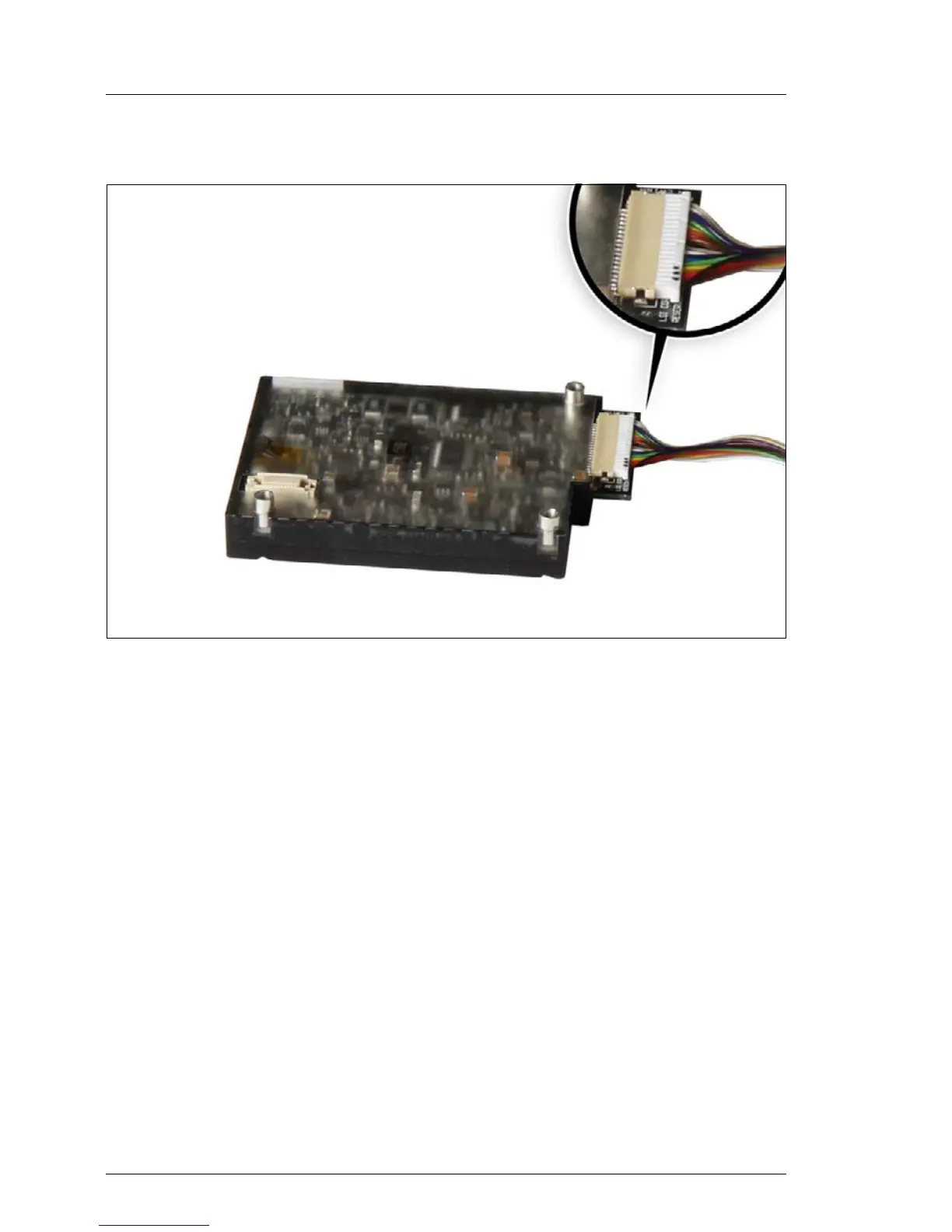

Figure 88: Connecting the cable to the BBU
Ê Connect the BBU cable to the BBU.
V CAUTION!
The connector side with the three dots (see close-up) shows upward.
