TX120 S3 Upgrade and Maintenance Manual 209
Expansion cards and backup units

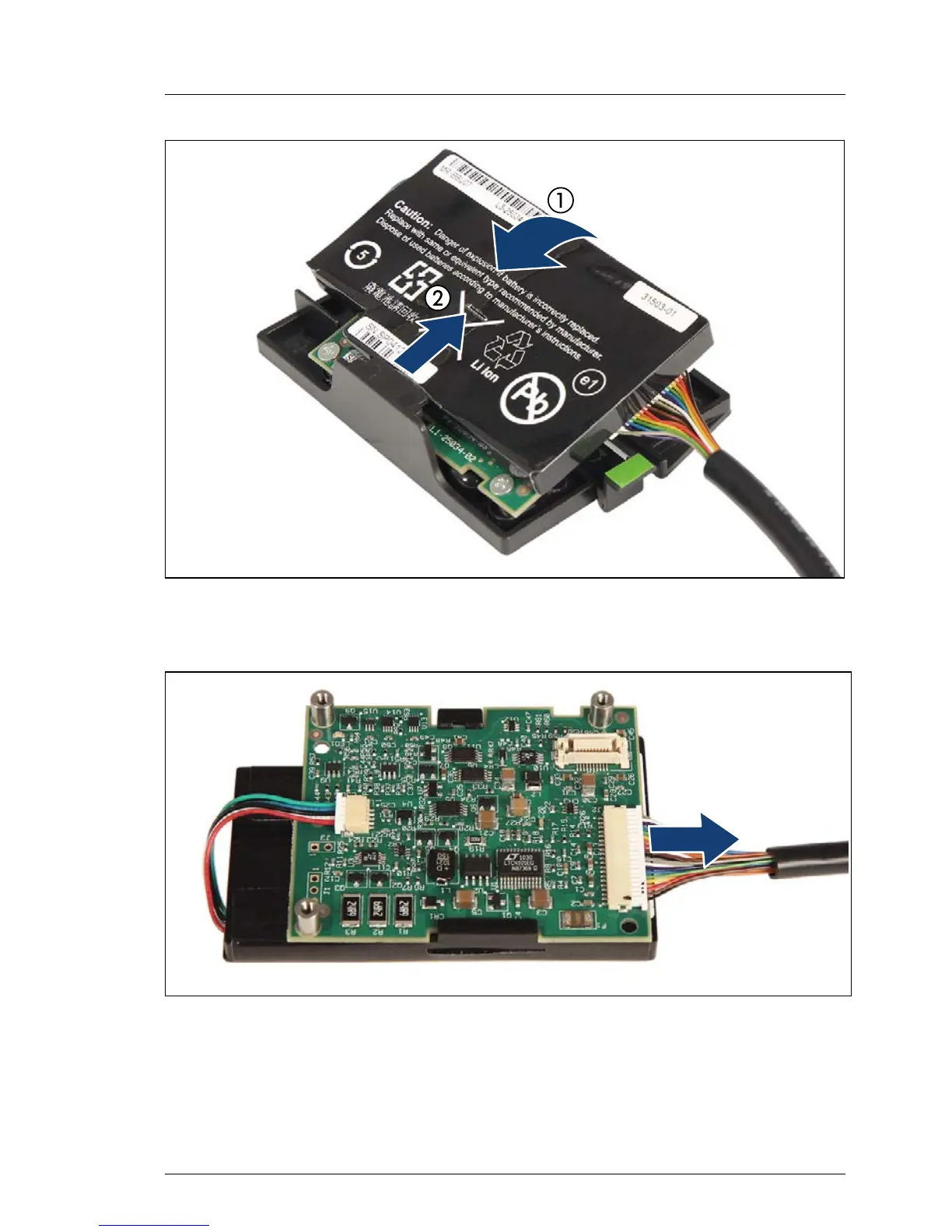

Figure 103: Removing the BBU from the BBU holder
Ê Fold up the BBU (1) and at a slight angle remove it from the BBU holder (2).
Figure 104: Disconnecting the BBU cable from the BBU
Ê Carefully disconnect the BBU cable from the defective BBU.
