TX120 S3 Upgrade and Maintenance Manual 237
Main memory

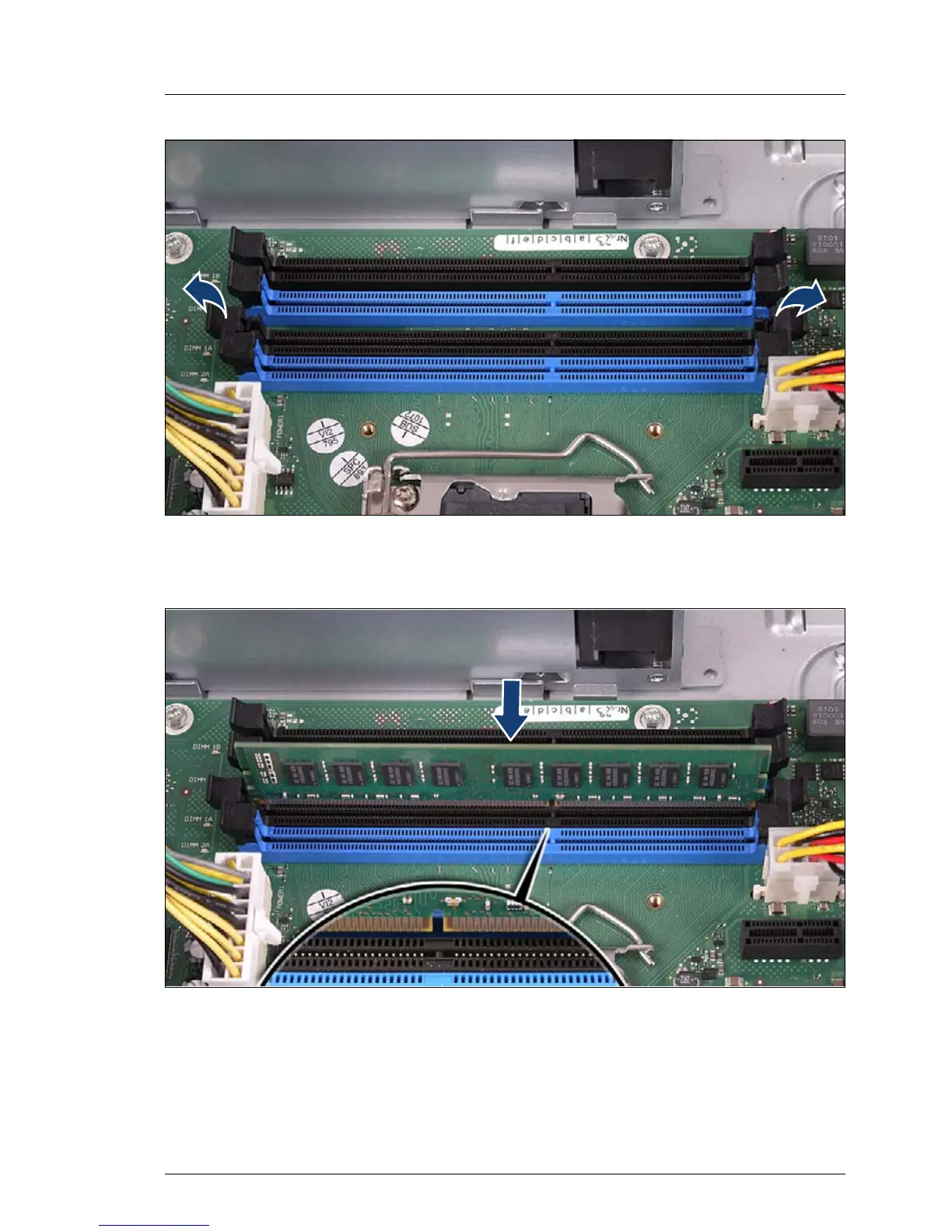

Figure 129: Installing memory modules (A)
Ê Press out the securing clip at each end of the memory module connector.
Figure 130: Installing memory modules (B)
Ê Align the notch on the bottom of the module with the crossbar in the
connector (see circle).
Ê Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
