296 Upgrade and Maintenance Manual TX120 S3
Front panel and LAN connector

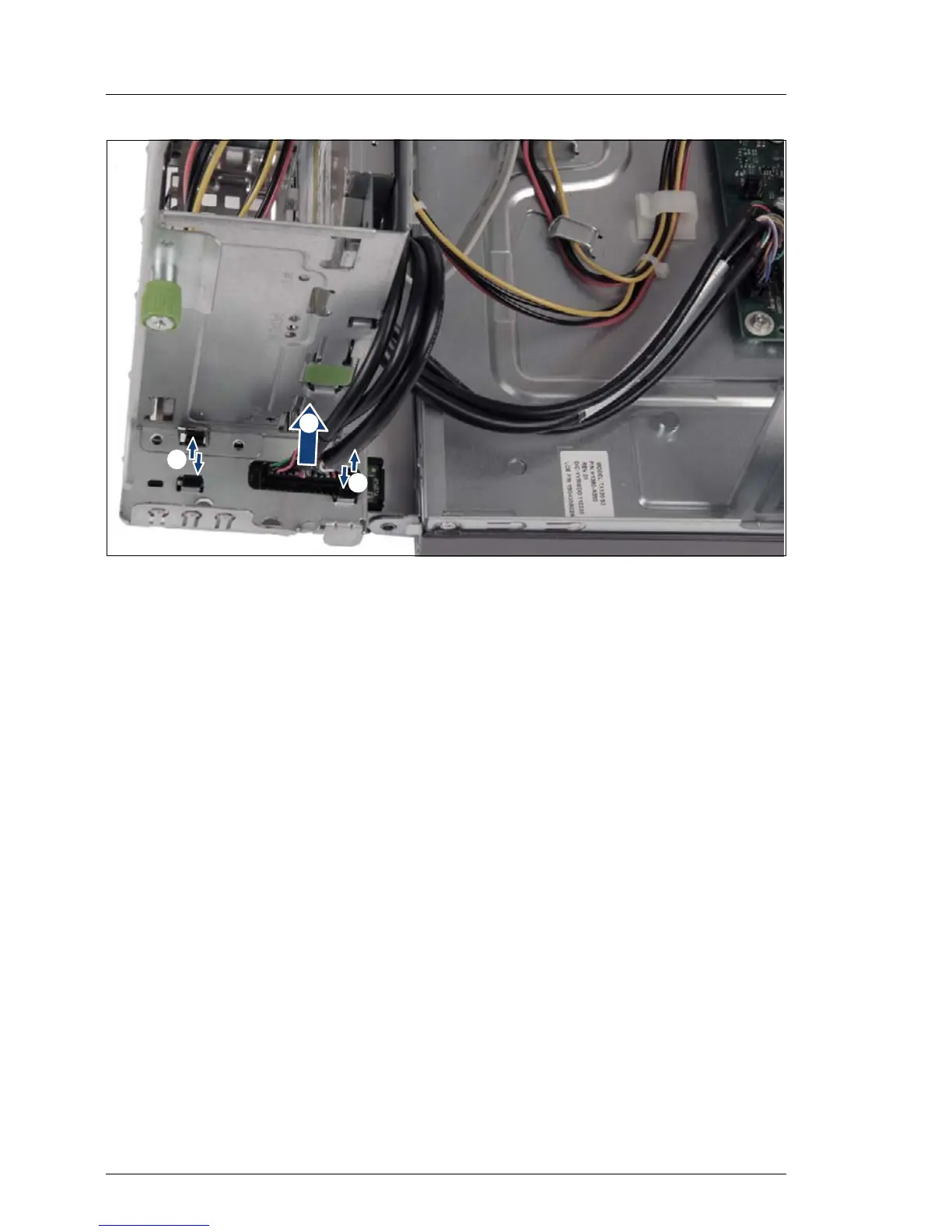

Figure 169: Removing the front panel module
Ê Disconnect the front panel cable from the front panel module (1).
Ê Disengage the retention hooks of the front panel module (2).
Ê Remove the defective front panel module.
Ê Fold down the front cage.
/
