298 Upgrade and Maintenance Manual TX120 S3
Front panel and LAN connector

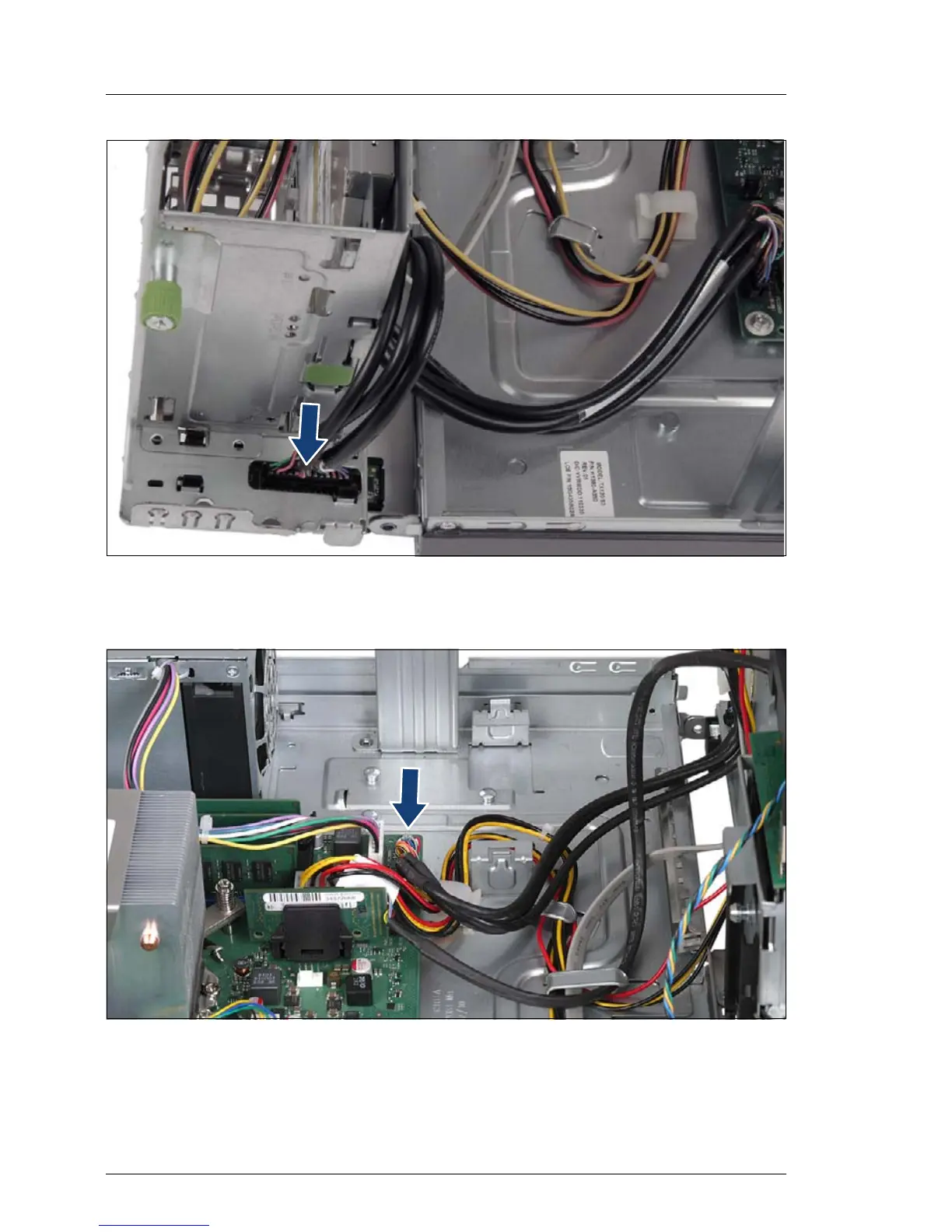

Figure 171: Connecting the front panel cable to the front panel module
Ê Connect the front panel cable to the front panel module.
Figure 172: Connecting the front panel cable to the system board
Ê Connect the front panel cable Y4015-V1 to the system board connector
FRONTPANEL.
