336 Upgrade and Maintenance Manual TX120 S3
System board and components

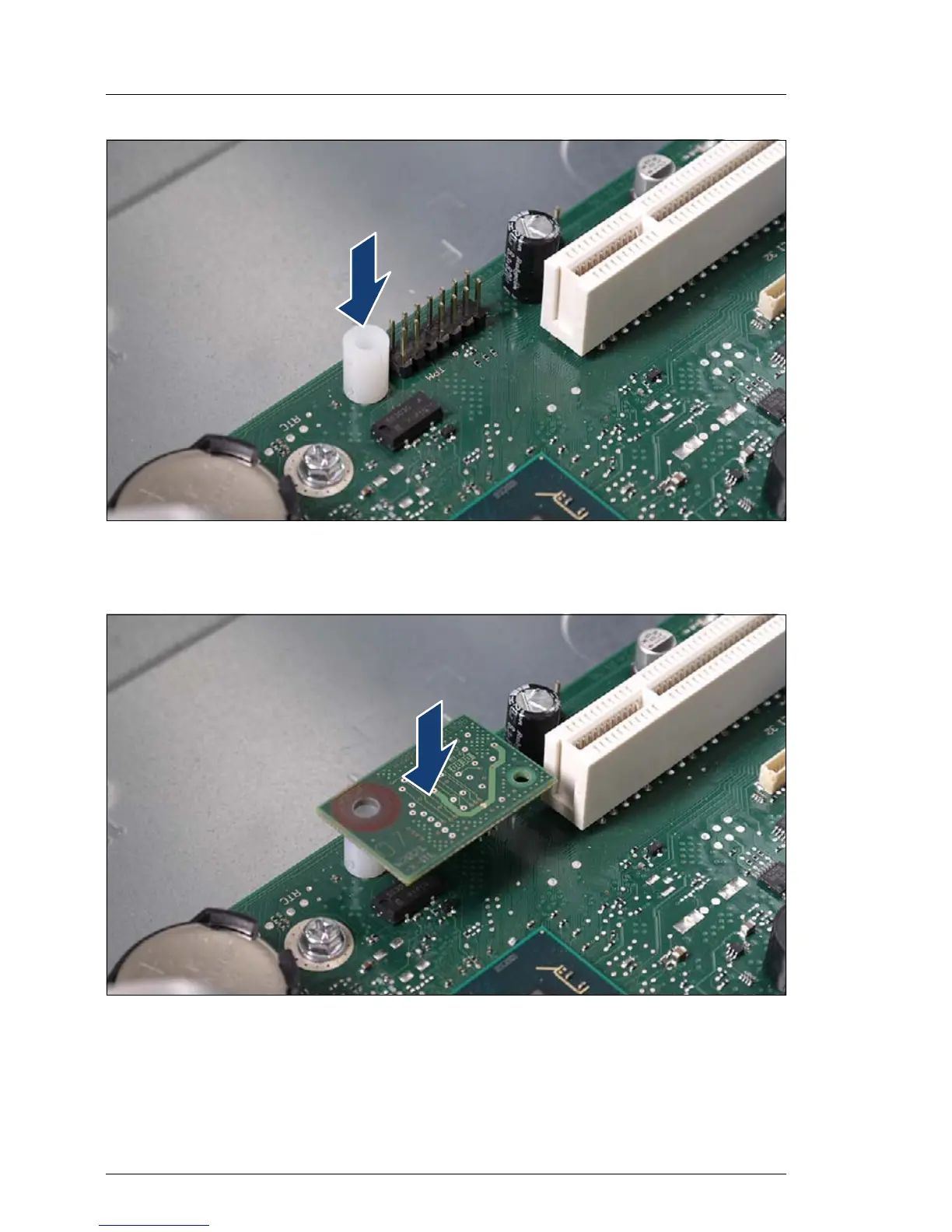

Figure 203: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
Figure 204: Installing the TPM board
Ê Connect the new TPM board to the system board.
