TX120 S3 Upgrade and Maintenance Manual 355
System board and components

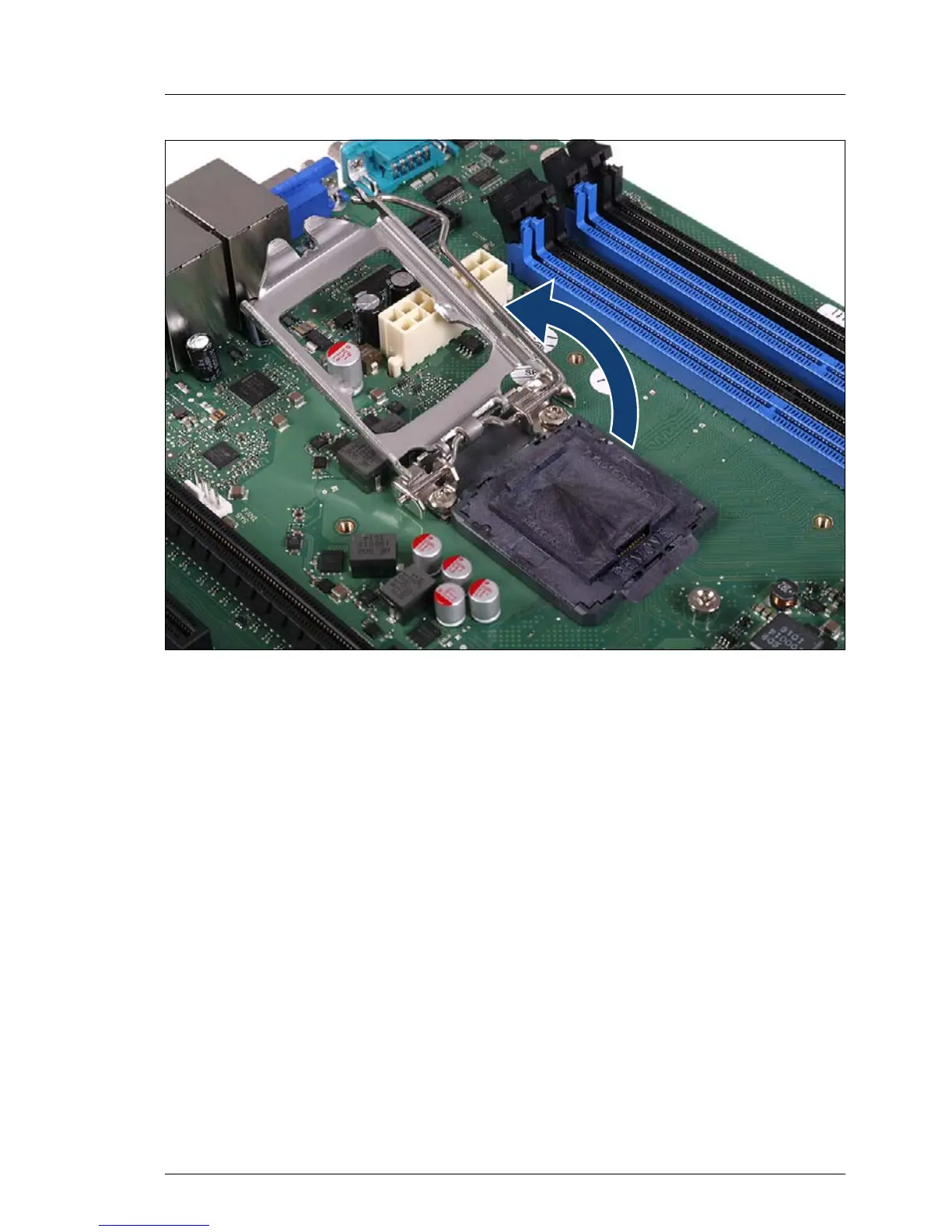

Figure 215: Opening the load plate (new system board)
Ê Rotate the socket lever to lift the load plate away from the socket.
Ê Make sure that the load plate is in the fully open position.
