TX120 S3 Upgrade and Maintenance Manual 413
Cables

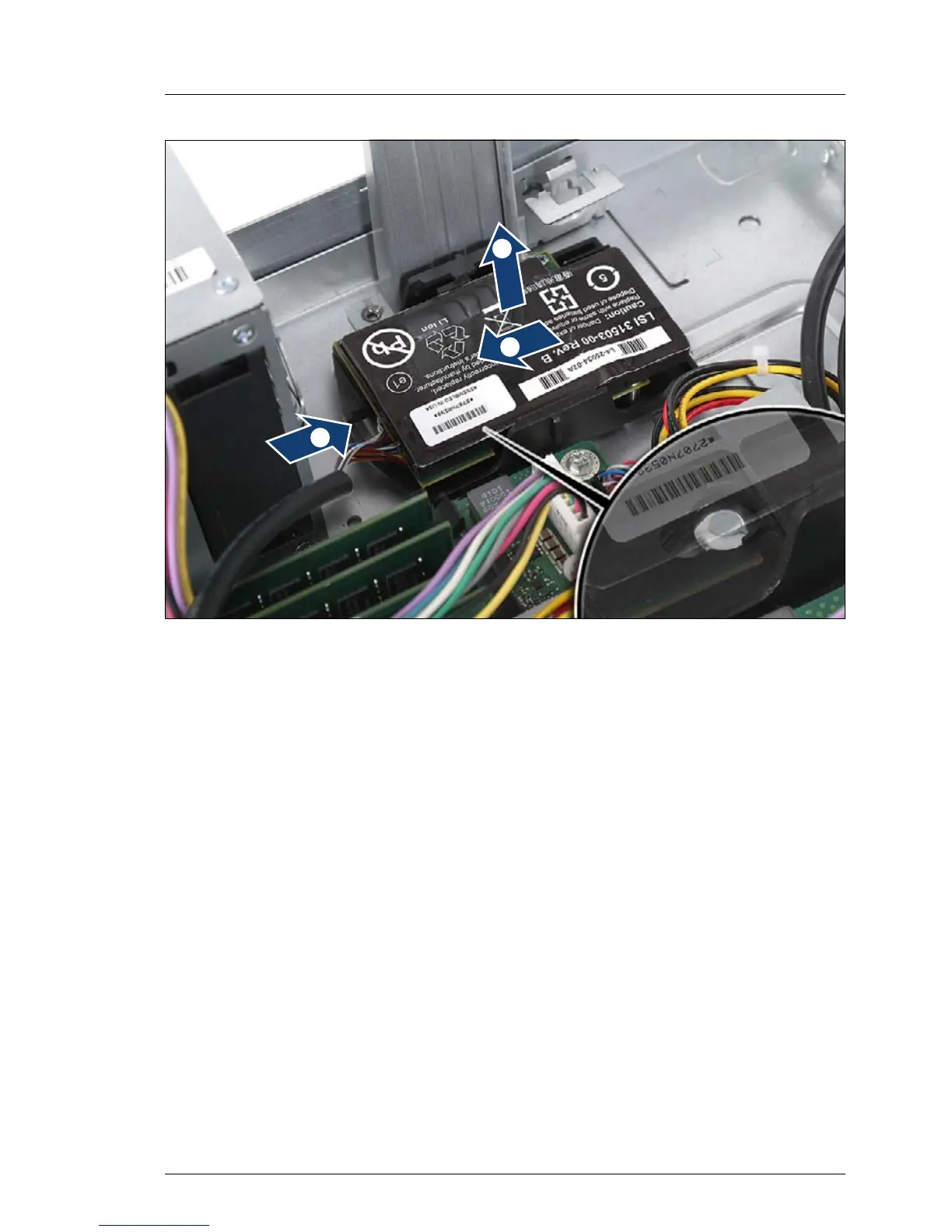

Figure 270: Removing the BBU holder from the chassis
Ê Lift up the green locking handle on the BBU holder (1) while sliding the BBU
holder to the right as far as it will go (2).
I After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the holder.
Ê Lift the BBU holder out of the chassis (3).
