Fujitsu PRIMERGY TX120 S3 Upgrade And Maintenance Manual

420 Upgrade and Maintenance Manual TX120 S3
Cables

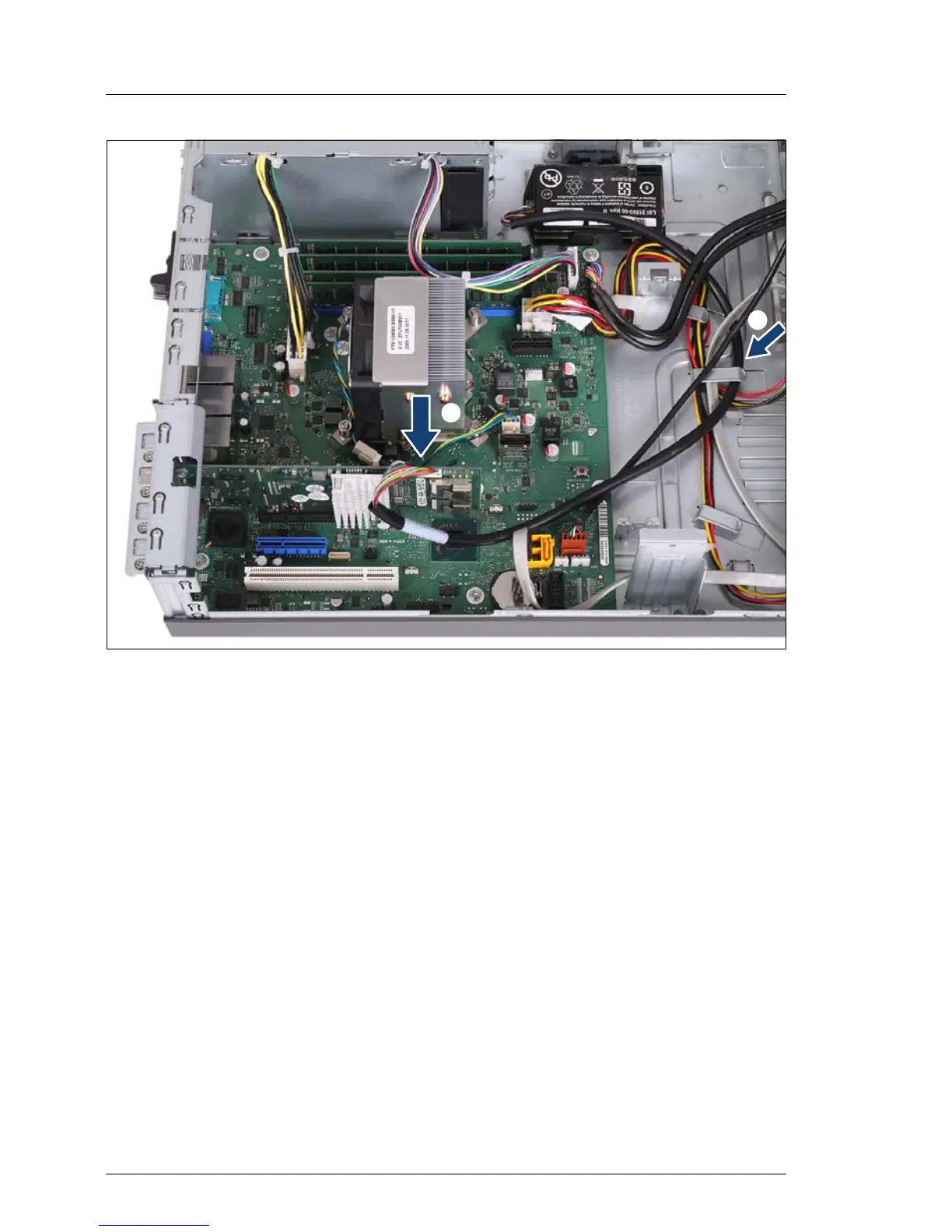

Figure 278: Connecting the BBU to the controller
Ê Connect the BBU cable to the RAID controller (1).
I The connector side with the three dots points towards you.
Ê Run the BBU cable through the cable clamp next to the HDD cage as shown
(2).
/
