Fujitsu PRIMERGY TX2540 M1

116 Upgrade and Maintenance Manual TX2540 M1
Power supply units

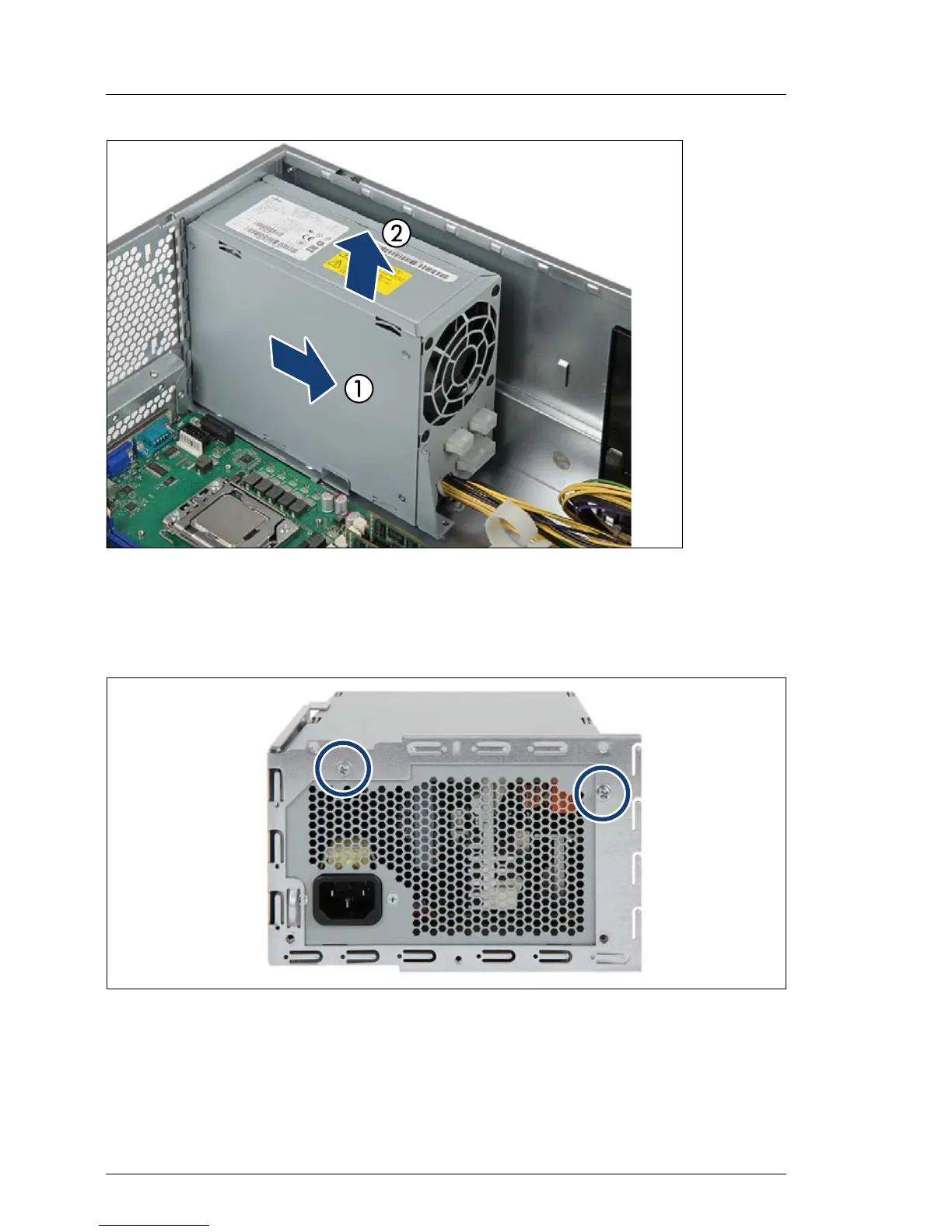

Figure 39: Removing the standard power supply unit
Ê Slide the power supply unit inside the chassis by 3 cm (1).
Ê Lift the power supply unit out of the chassis (2).
Figure 40: Removing the installation frame (A)
Ê Remove the two screws (see circles).
