TX2540 M1 Upgrade and Maintenance Manual 327
Accessible drives and LSD
12.6.1.3 Installing the 4x 3.5-inch HDD extension box
Ê Install the 4x 3.5-inch HDD extension box into installation bays 1, 2 and 3 as
described in section "Installing an HDD extension box" on page 183.
12.6.1.4 Cabling the slimline ODD
Ê Connect the SATA and power cables (see section "Cabling" on page 393).

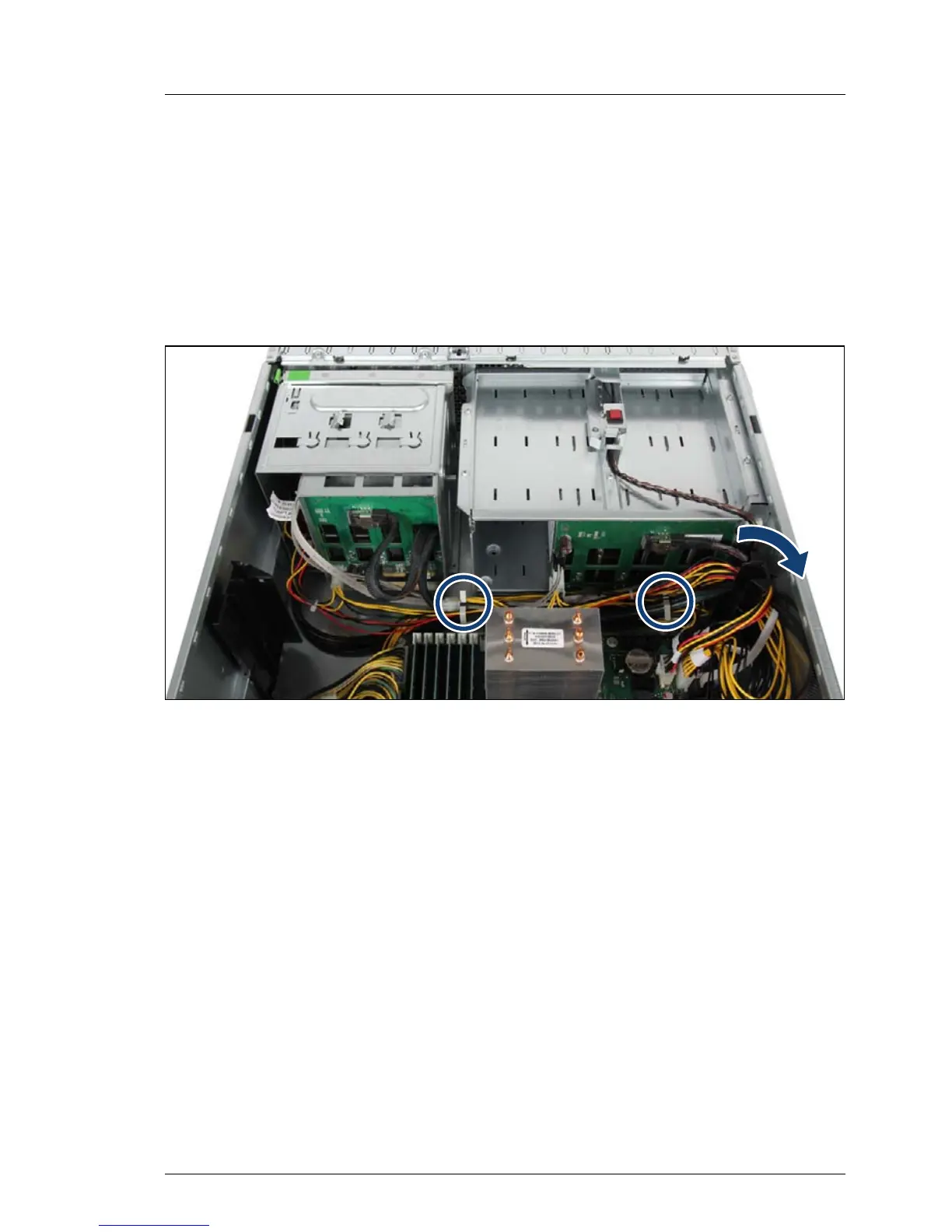

Figure 241: Routing cables
Ê Run the SATA cable along the drive bays and through the cable clamps on
the server floor as shown.
Ê Run the SATA cable through the cable guide.
12.6.1.5 Concluding steps
Ê "Installing the system fan holder" on page 75
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
