Fujitsu PRIMERGY TX2540 M1 Upgrade And Maintenance Manual

TX2540 M1 Upgrade and Maintenance Manual 319
Accessible drives and LSD
Ê Ensure that the four pins on the frame (see arrows) engage with the side
holes on the dummy insert.
Ê Insert the slimline ODD dummy module into the Multibay box and push back
until the locking tab engages as shown in figure 221 on page 311.
12.5.2.4 Removing the LSD module

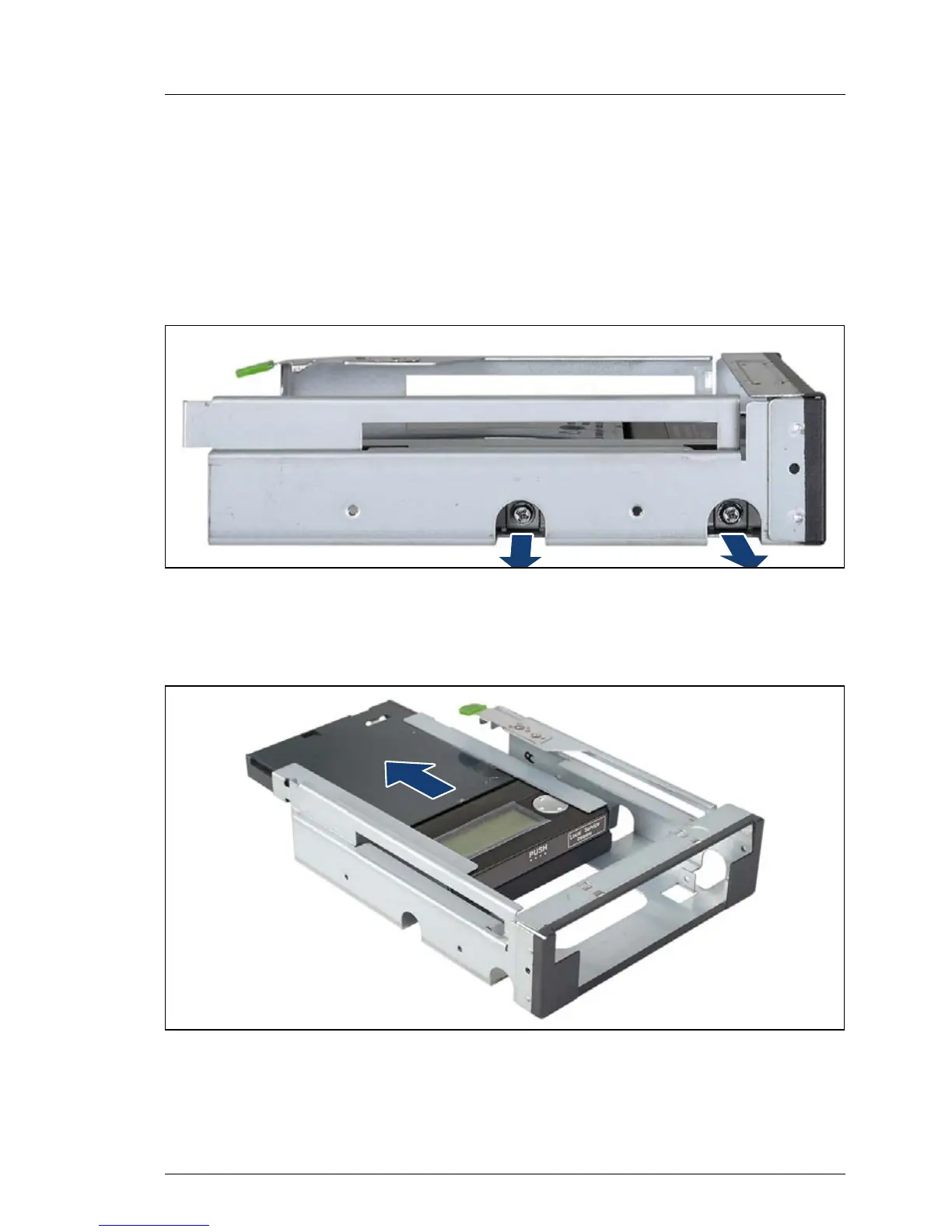

Figure 232: Removing the 3.5-inch installation frame from the Multibay box (A)
Ê Remove two screws on either side of the Multibay box to disengage the 3.5-
inch installation bay.
Figure 233: Removing the 3.5-inch installation frame from the Multibay box (B)
Ê Slide the 3.5-inch installation frame out of the Multibay box as shown.

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
