146 Upgrade and Maintenance Manual
TX2540 M1
Hard disk drives / solid state drives
7.2.5 Installing 2.5-inch HDD / SSD modules
7.2.5.1 Preliminary steps
Ê "Removing accessible drive and HDD bay covers" on page 58
Ê Locate the correct drive bay as described in section "2.5-inch HDD / SSD
configurations" on page 139.
7.2.5.2 Removing a 2.5-inch HDD / SSD dummy module

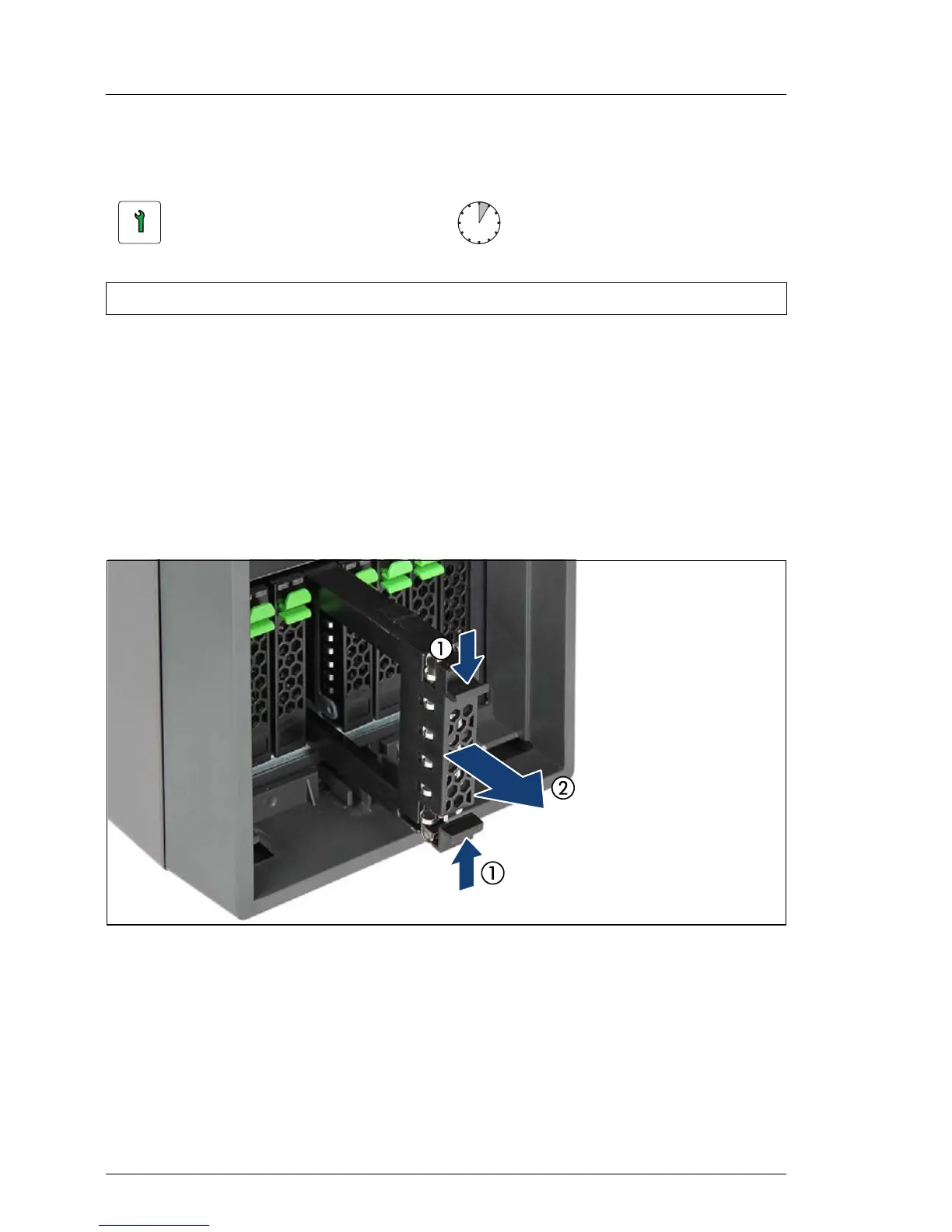

Figure 68: Removing a 2.5-inch dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD / SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
