Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 197
Hard disk drives / solid state drives
7.5.1.3 Installing the SAS expander board

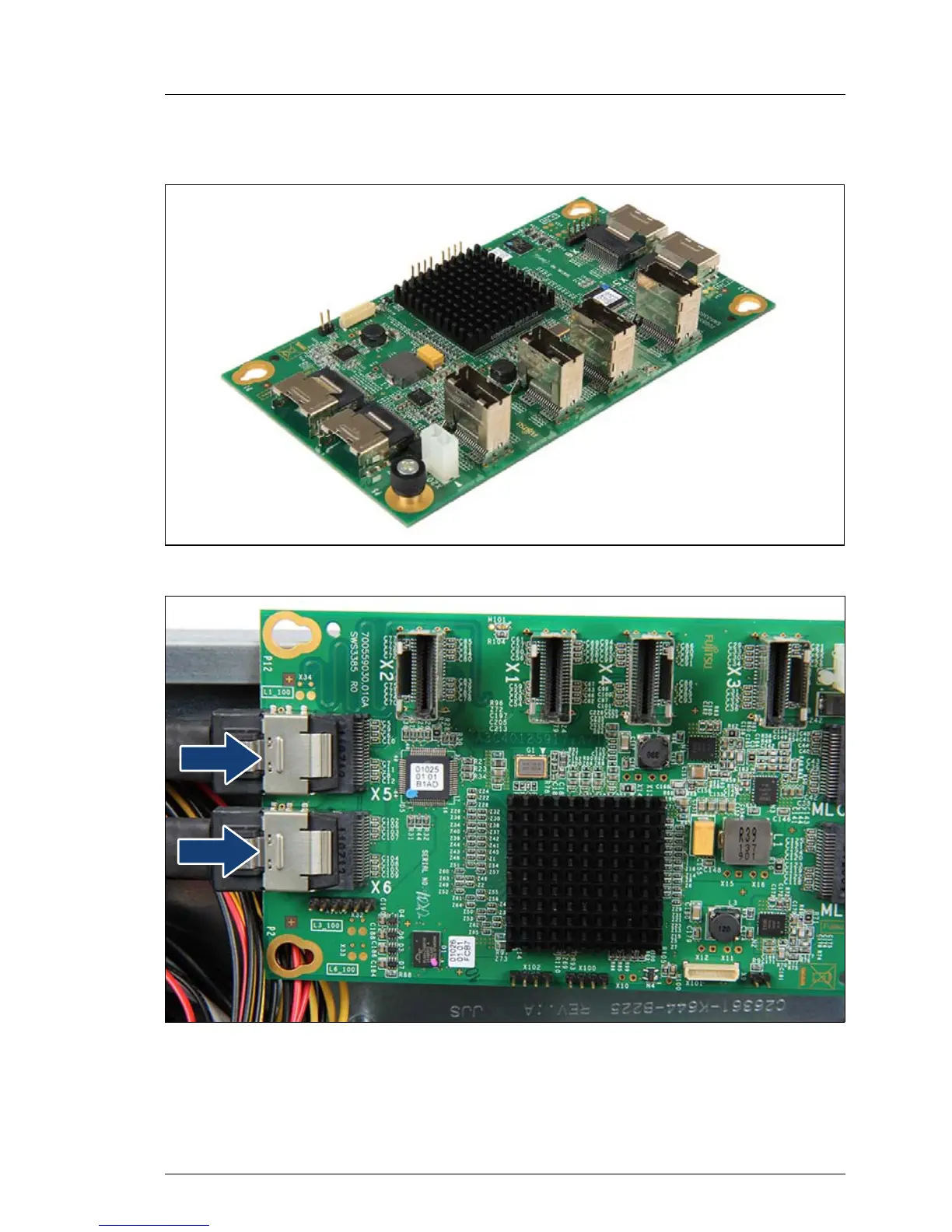

Figure 124: SAS expander board (A3C40125917)
Figure 125: Connecting SAS cables
Ê Connect the two SAS cables coming from the bottom and middle 2.5-inch
HDD cages to the connectors "X5" and "X6" on the SAS expander board.
This is recommended because of the shortness of these cables.
