Fujitsu PRIMERGY TX2540 M1

196 Upgrade and Maintenance Manual TX2540 M1
Hard disk drives / solid state drives

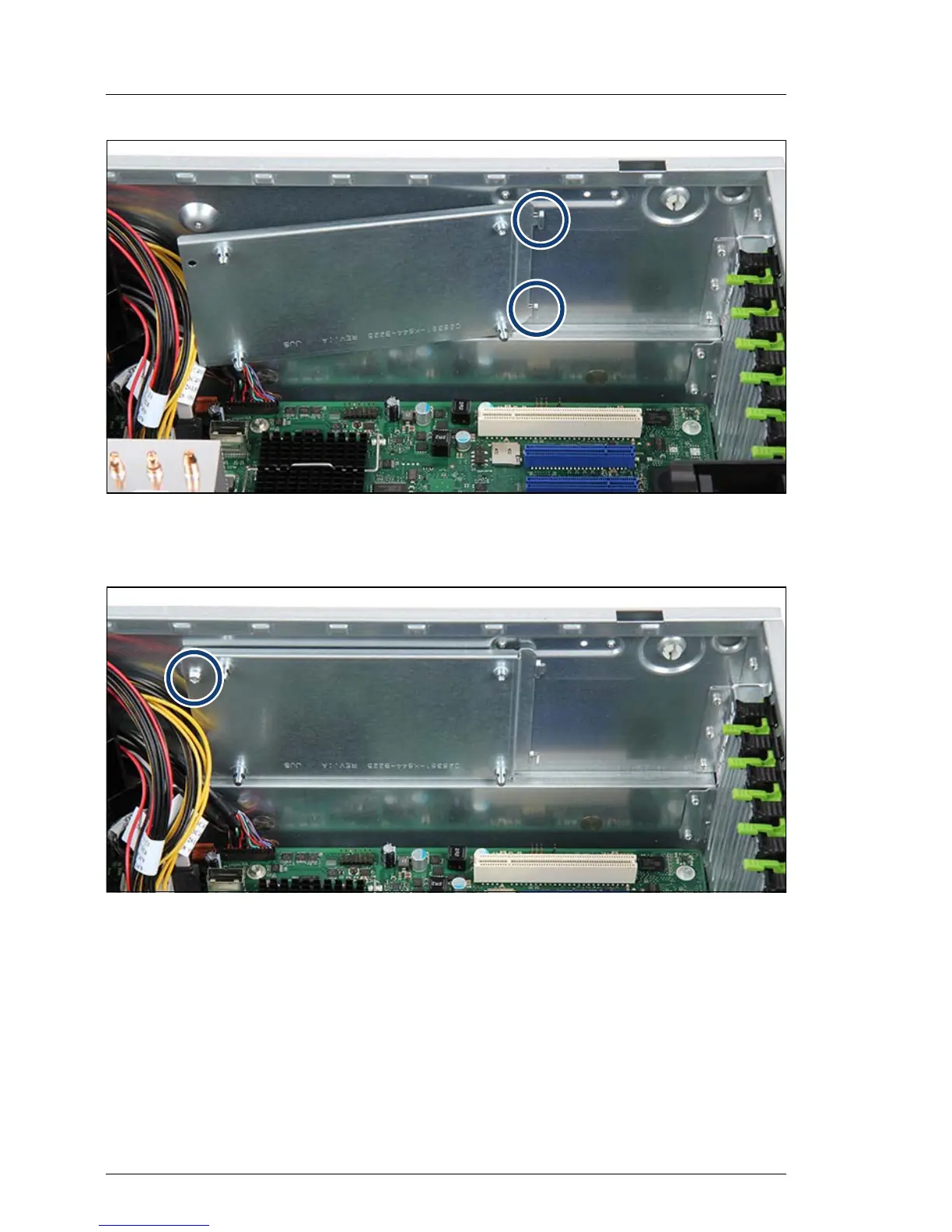

Figure 122: Installing the carrier (A)
Ê Insert the two noses of the carrier into the hooks of the chassis.
Figure 123: Installing the carrier (B)
Ê Set the carrier in place. Take care that the cables are not damaged!
Ê Fasten the carrier with one screw (see circle).
