Fujitsu PRIMERGY TX2540 M1 - 8 X 3.5-Inch HDD Configuration

TX2540 M1 Upgrade and Maintenance Manual 167
Hard disk drives / solid state drives
7.3.3 8x 3.5-inch HDD configuration
I This configuration requires the 4x 3.5-inch HDD extension box (see
section "HDD extension boxes" on page 181.
Mounting order

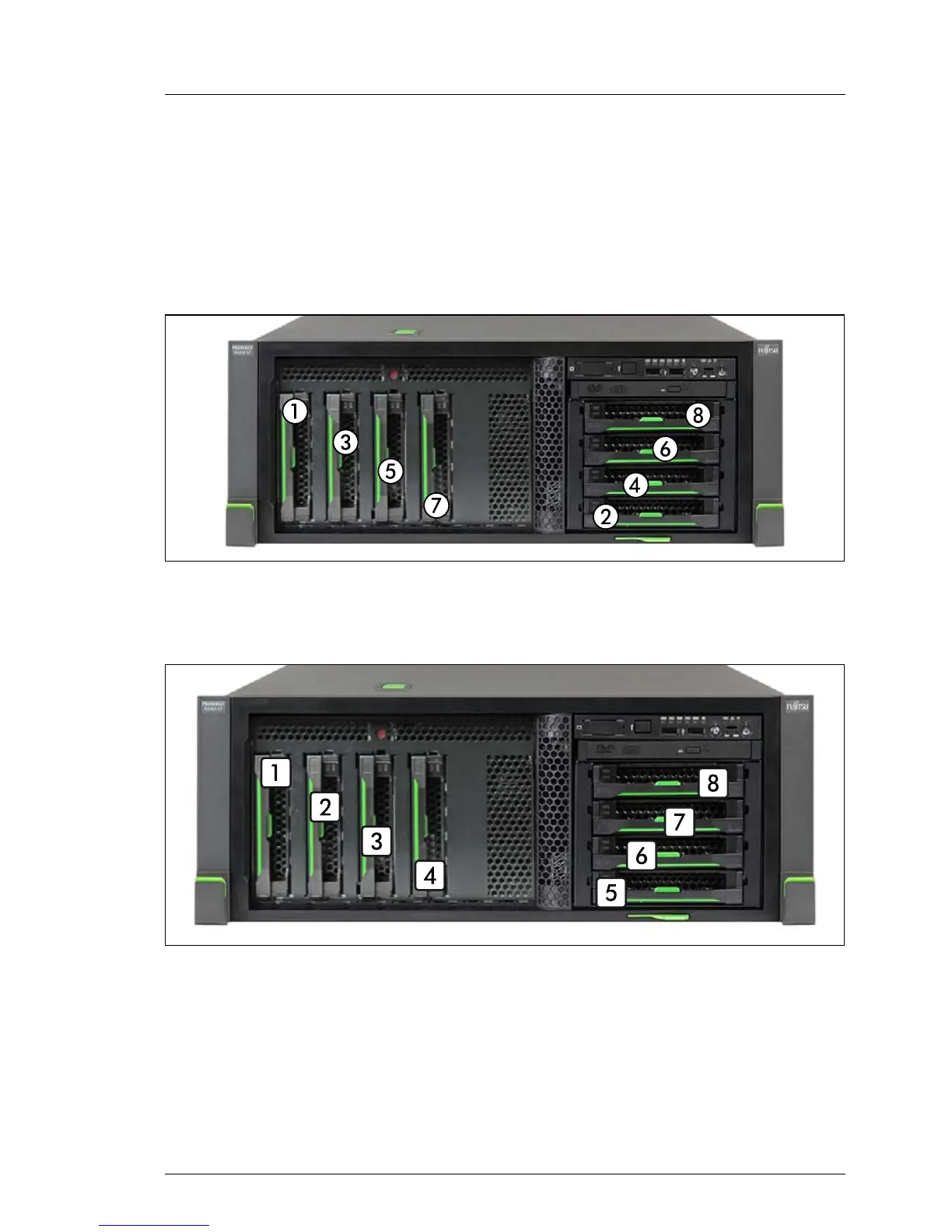

Figure 91: Mounting order with up to 8 3.5-inch HDDs (2 SAS backplanes)
HDD / SSD naming scheme
Figure 92: Naming scheme with 8 3.5-inch HDDs (2 SAS backplanes)
