8.3.2 Removing the rear fan
8.3.2.1 Preliminary steps
Ê "Shutting down the server" on page 48
Ê "Disconnecting the server from the mains" on page 48
Ê "Getting access to the component" on page 49
8.3.2.2 Removing the rear fan

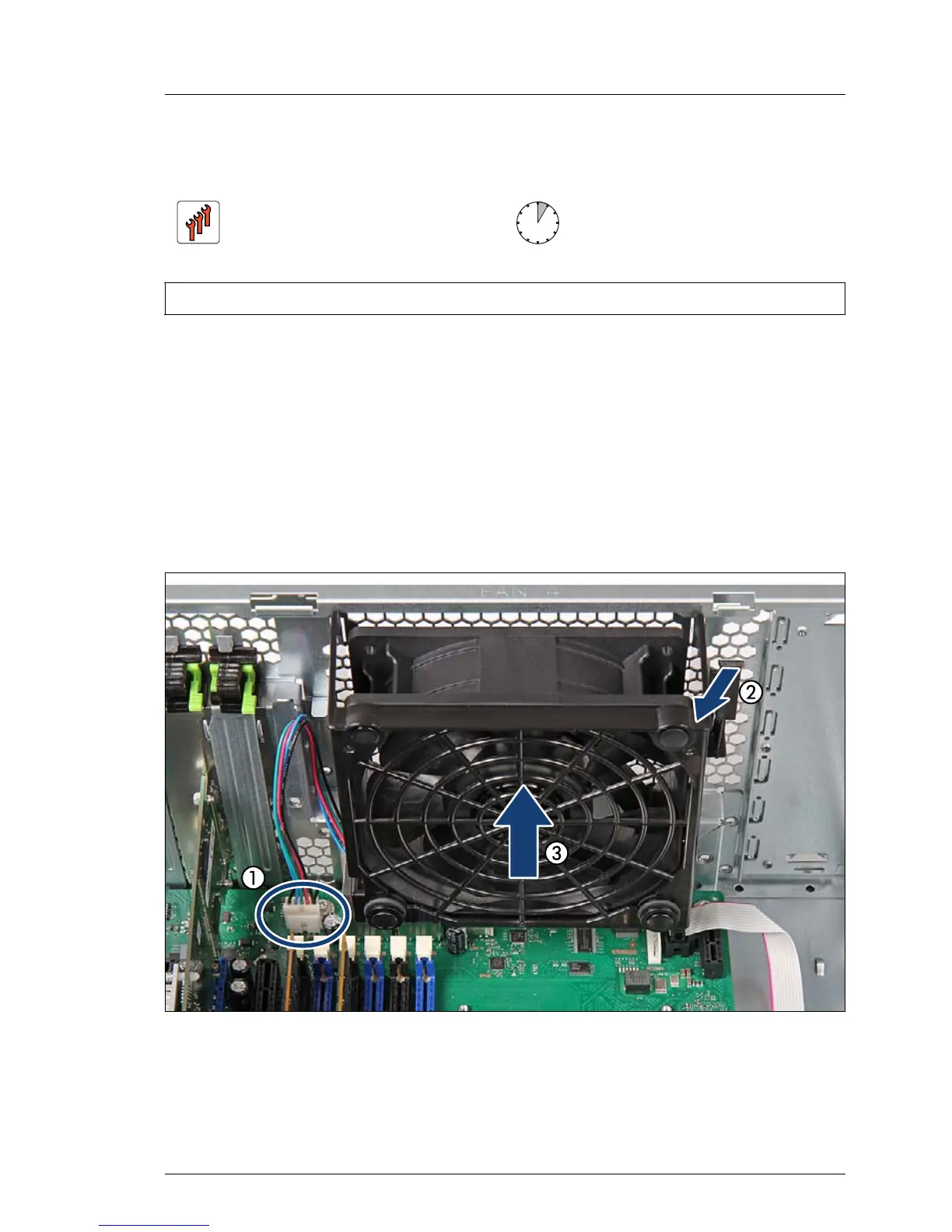

Figure 137: Removing the rear fan (A)
Ê Disconnect the fan cable from the connector "FAN 4"on the system board
(1).
Ê Pull the locking lever (2) while lifting up the rear fan (3).
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Tools: tool-less
