6.2.1.2 Removing the defective standard power supply unit

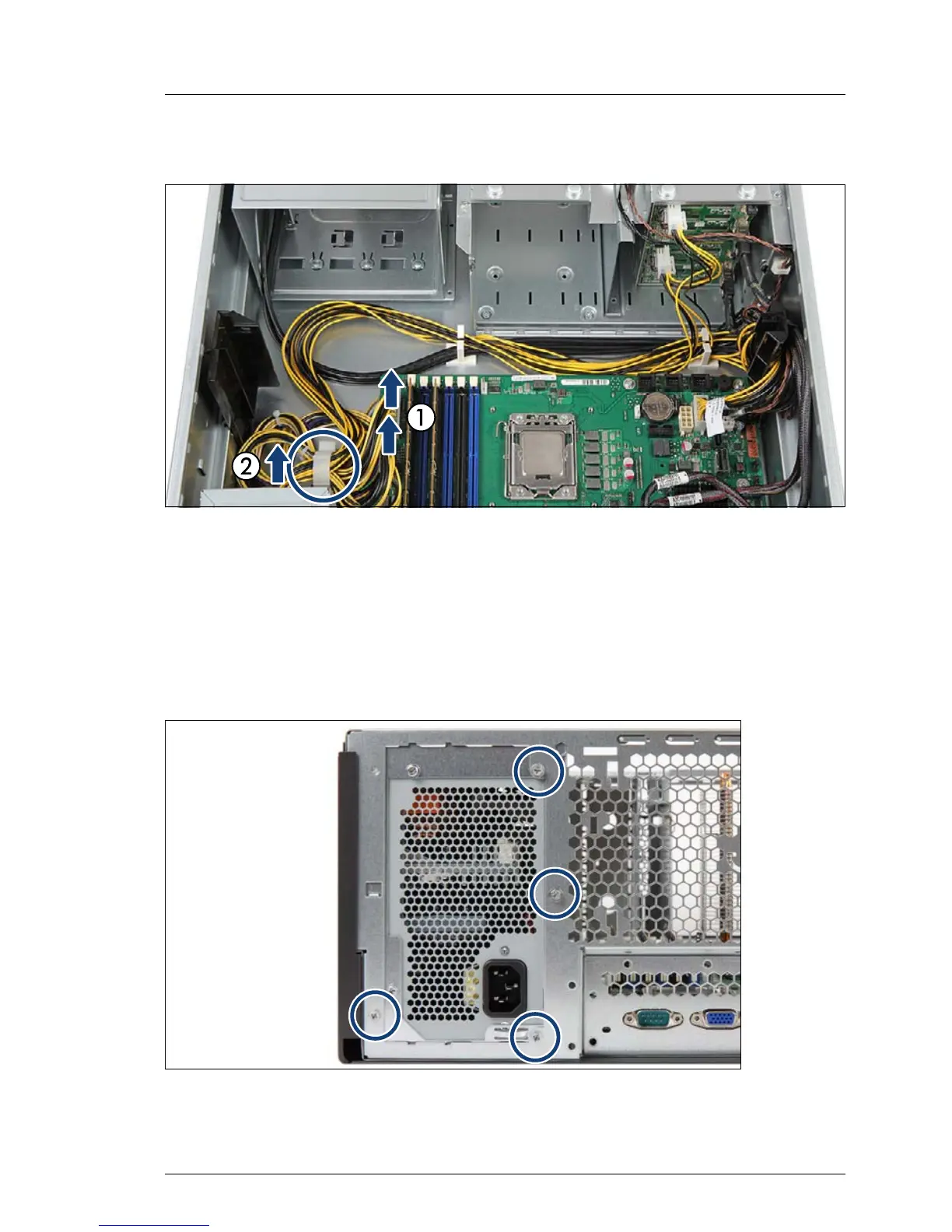

Figure 37: Disconnecting power cables
Ê Open the cable clamp and disconnect the short power cable from the system
board (1).
Ê Disconnect the long power cable from the connector on the power supply
unit (2). The power cable can remain in the cable clamps.
Ê Note the position of the power cables.
Figure 38: Detaching the standard power supply unit
Ê Remove the four screws (see circles).
