Fujitsu PRIMERGY TX2540 M1

124 Upgrade and Maintenance Manual TX2540 M1
Power supply units
6.3.2.2 Removing a hot-plug PSU

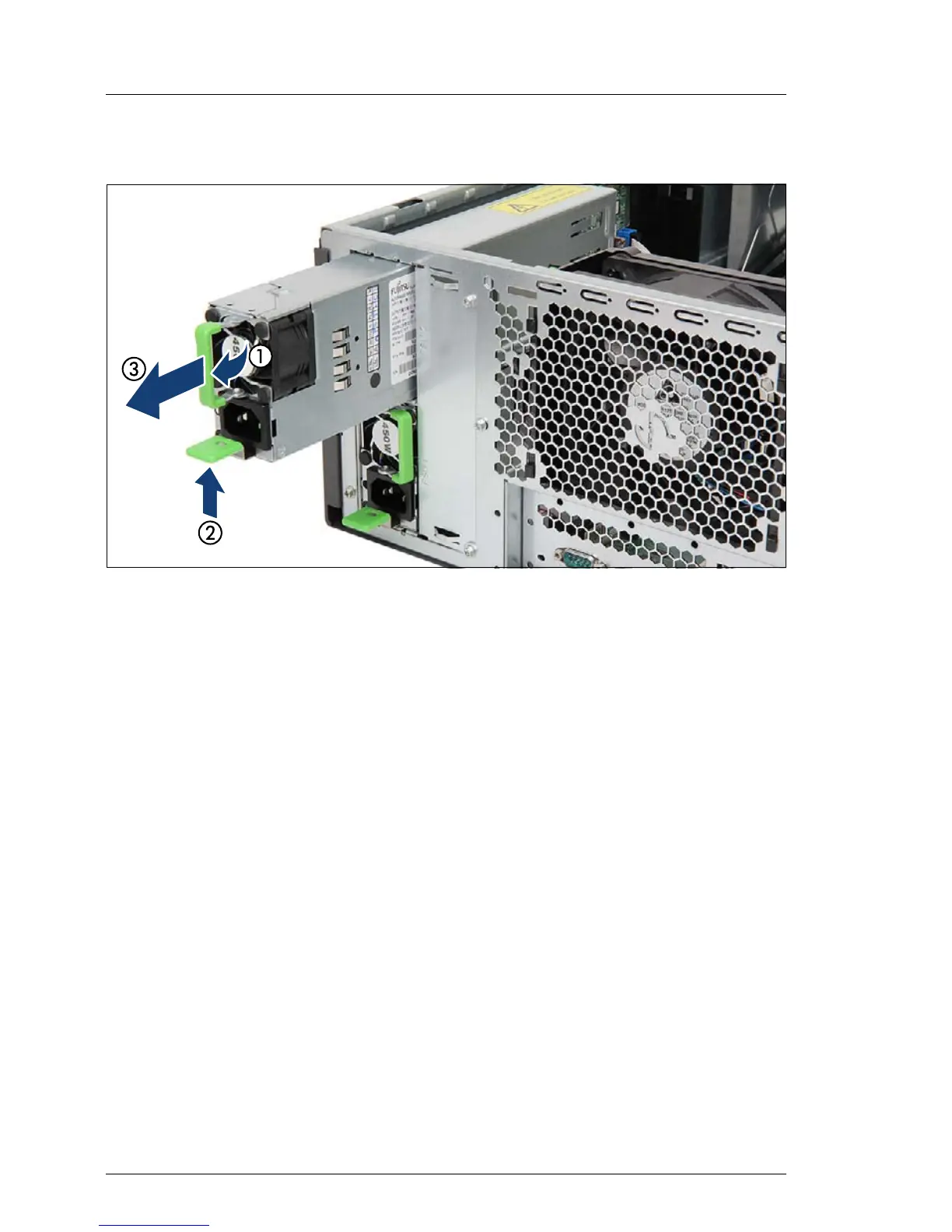

Figure 49: Removing a hot-plug PSU
Ê Fold up the handle on the hot-plug PSU (1).
Ê Press in on the green release latch (2).
Ê While keeping the green release latch pressed, pull the hot-plug PSU out of
its bay (3).
