Hard disk drives / solid state drives
7.2.2 8x 2.5-inch HDD / SSD configuration
Mounting order

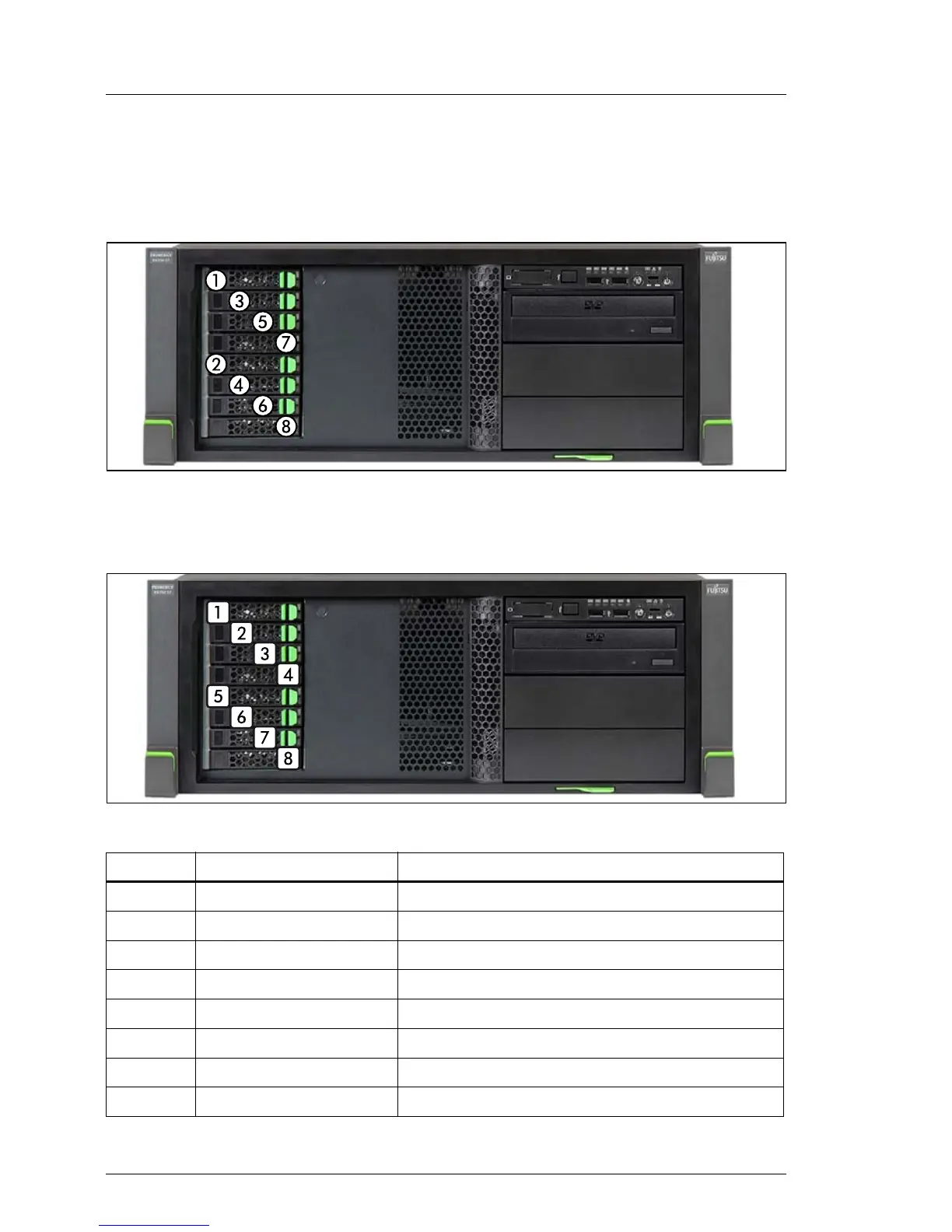

Figure 62: Mounting order with up to 8 2.5-inch HDDs (2 SAS backplanes)
HDD / SSD naming scheme
Figure 63: Naming scheme with 8 2.5-inch HDDs (2 SAS backplanes)
Position Logical drive number ServerView RAID Manager display name
[1] 0 HDD vendor name (0)
[2] 1 HDD vendor name (1)
[3] 2 HDD vendor name (2)
[4] 3 HDD vendor name (3)
[5] 4 HDD vendor name (4)
[6] 5 HDD vendor name (5)
[7] 6 HDD vendor name (6)
[8] 7 HDD vendor name (7)
