9.4.1.2 Removing the PCI slot bracket

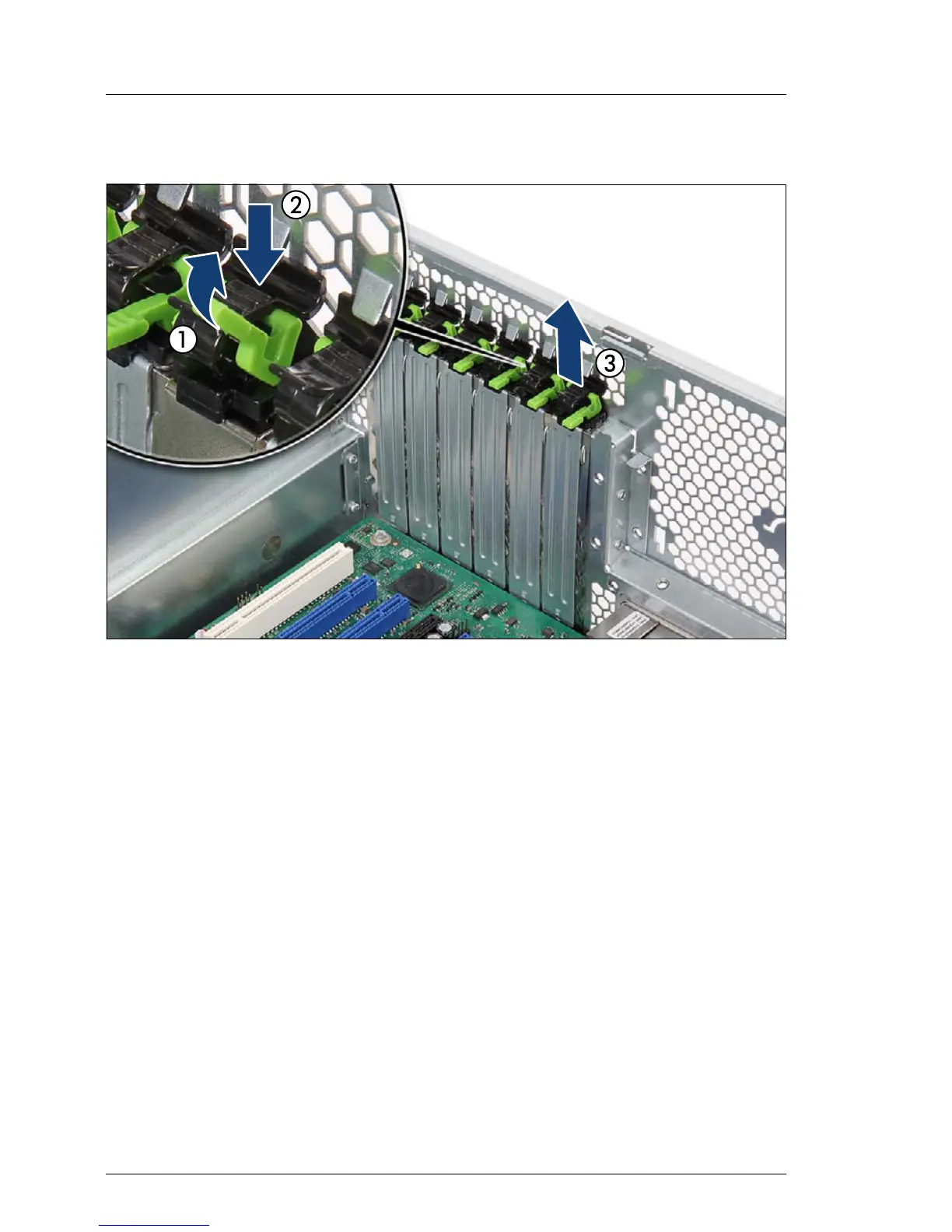

Figure 157: Removing the PCI slot bracket (A)
Ê Fold up the locking handle on the slot bracket clamp (1, see close-up).
Ê Press down on the slot bracket clamp to disengage it (2, see close-up).
Ê Remove the slot bracket clamp (3).
Ê If applicable, remove the slot bracket.
V CAUTION!
Keep the slot bracket for further use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
9.4.1.3 Installing an expansion card
Ê Remove the expansion card from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
