7.2.6.2 Removing a 2.5-inch HDD / SSD module

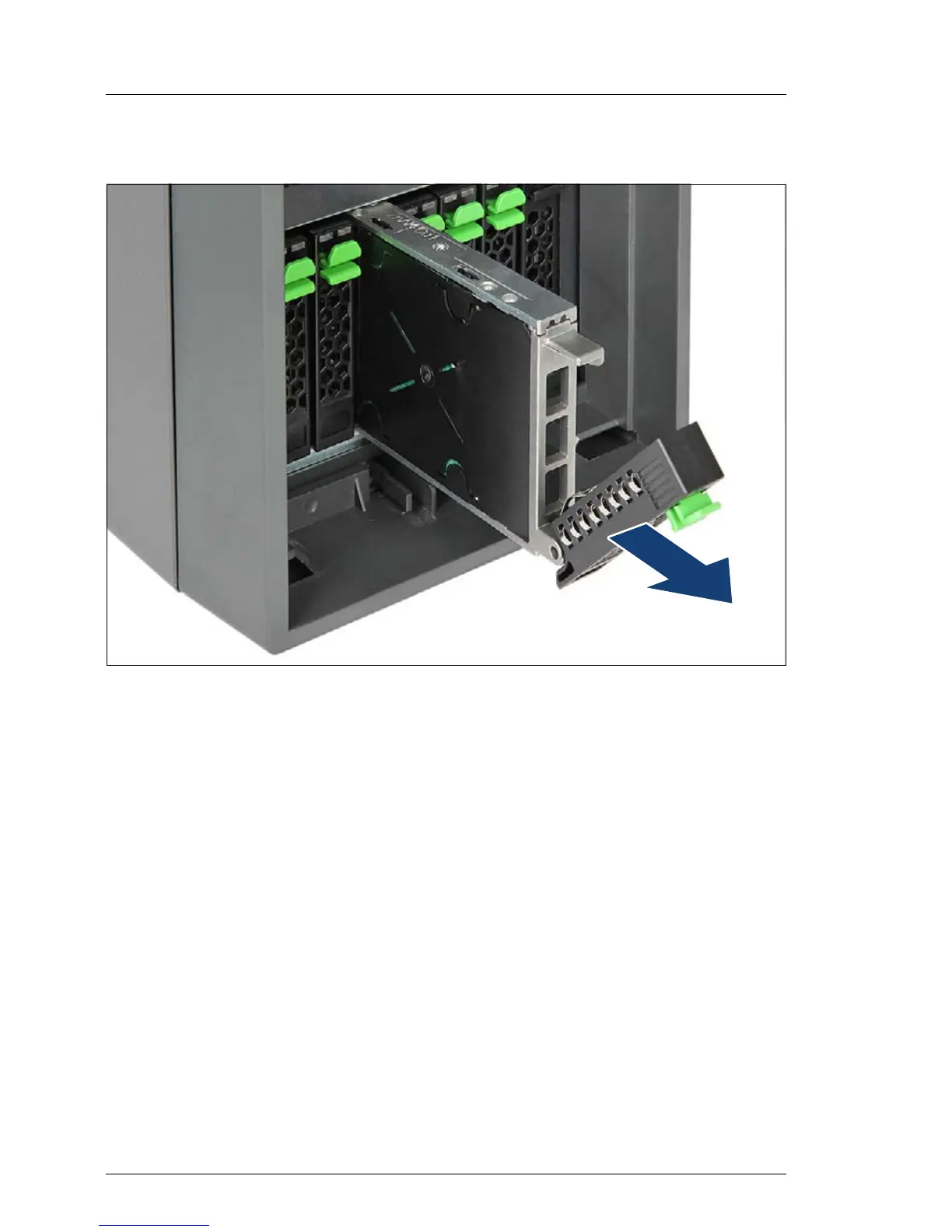

Figure 71: Removing a 2.5-inch HDD / SSD module
Ê Pinch the green locking clips and fully open the locking lever (see figure 69).
Ê Wait about 30 seconds to allow the hard disk drive to spin down.
I This is not necessary when removing a solid state drive.
Ê Pull the HDD / SSD module completely out of its bay.
