Installing accessible drive covers

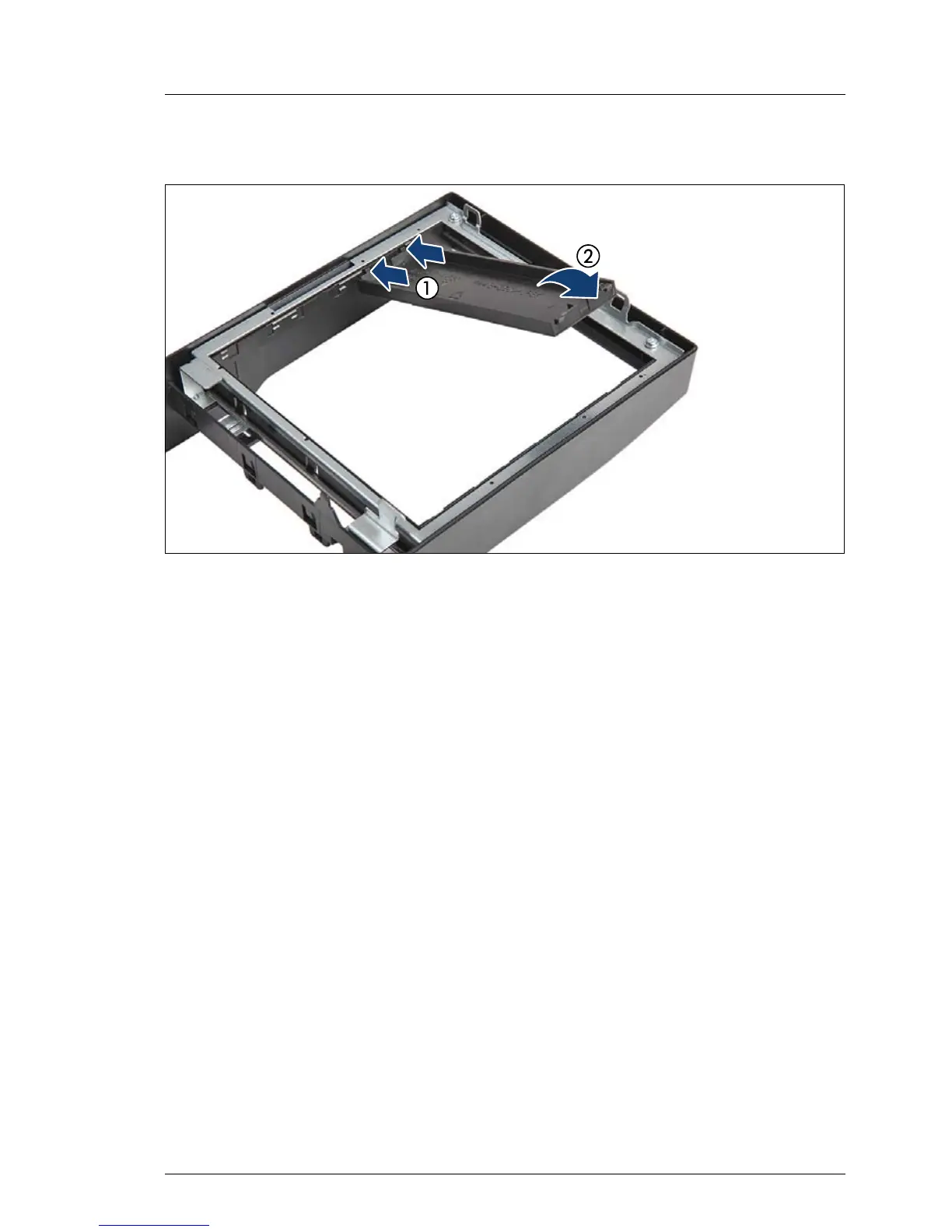

Figure 120: Installing accessible drive covers
I Installing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê Ensure that an accessible drive filler cover has been installed in every empty
drive bay.
Ê Turn the front cover face down.
Ê Join the two lugs on one edge of the accessible drive cover with the right
inner edge of the front cover (1).
Ê Fold down the accessible drive cover until it snaps in place (2).
7.4.3.4 Concluding steps
Ê Removing a 4x 3.5-inch HDD extension box: "Removing the slimline ODD"
on page 328 (if applicable)
Ê "Installing the system fan holder" on page 75
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
Ê "Enabling BitLocker functionality" on page 101
